| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature Range | |
| Climatic Category | |
| Current Rating | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| IP Rating | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Packaging Unit | |
| Panel Thickness | |
| Rated Power Acceptance | |
| Storage Temperature Range | |
| Termination Style | |
| Torque on Fixing Nut | |
| Voltage | |
| Voltage Rating | |
| Weight |

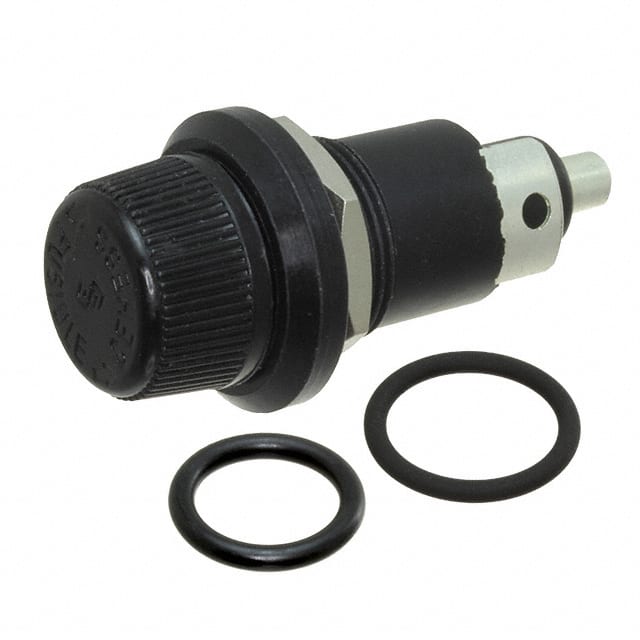

This is a panel mount fuseholder from Schurter, designed for 6.3x32mm cartridge fuses. It has a maximum current rating of 16A at 250VAC and can dissipate up to 3.6W power acceptance at 23°C ambient. The holder features IP68 protection from the front side, making it suitable for environments where dust and moisture ingress must be prevented. It is mounted using a fixing nut with a maximum torque of 1.2Nm and can accommodate panel thickness up to 5mm. The termination style is solder lug. The mounting is front-side panel mount. The operating temperature range is -40°C to 125°C, and the climatic category is 40/125/56 per IEC 60068-1. The fuseholder is suitable for use in industrial, automotive, and harsh environment applications. The holder is made of thermoset material (black) and weighs 38g (socket/cap). Packaging is bulk of 10 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $119.27 | $119.27 |
| 5+ | $98.91 | $98.91 |
| 10+ | $91.21 | $91.21 |
| 50+ | $75.44 | $75.44 |
| 100+ | $69.45 | $69.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16A (continuous).
250VAC.
-40°C to 125°C.
IP 68 from the front side.
Panel mount, front-side, with solder lug termination and fixing nut (max torque 1.2Nm).
6.35mm x 32mm (1/4 inch x 1-1/4 inch) cartridge fuses.
Bulk of 10 pieces.
