| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Lead Style | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Wire Gauge |

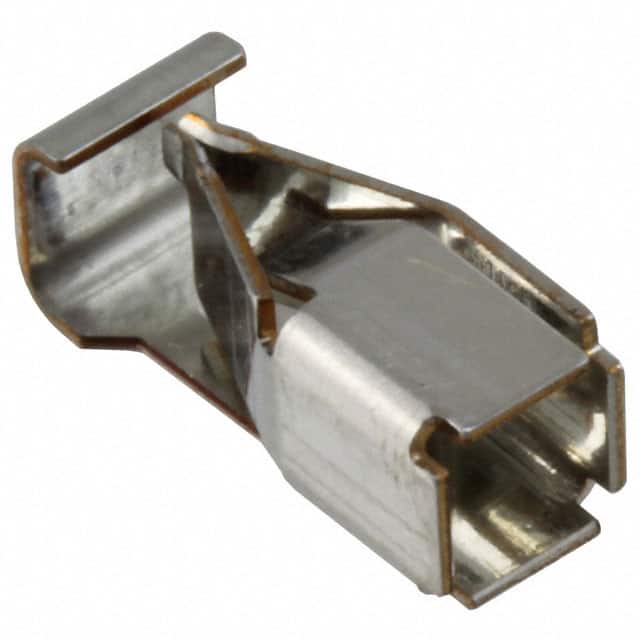

The Kyocera AVX 709296001003006 is a single-position, female poke-home contact from the STRIPT 70-9296 series, designed for wire-to-board applications in solid state lighting and industrial electronics. It accepts 18-26 AWG solid or stranded wire and features a dual-beam box contact design for reliable mechanical retention and electrical connection.
Key electrical ratings include 12A current (derated per AWG, up to 15A at 12 AWG per datasheet) and 300V voltage rating. The contact is rated for 5 mating cycles and operates over -40°C to +125°C. Contact material is phosphor bronze with pure tin plating.
The contact is surface mount, right angle, and supplied in tape and reel packaging with a standard quantity of 2500. It is RoHS3 compliant, lead free, and REACH unaffected. The maximum insulation diameter is 2.5 mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.31 | $0.31 |
| 10+ | $0.26 | $0.26 |
| 25+ | $0.25 | $0.25 |
| 50+ | $0.24 | $0.24 |
| 100+ | $0.22 | $0.22 |
| 250+ | $0.21 | $0.21 |
| 500+ | $0.20 | $0.20 |
| 1,000+ | $0.19 | $0.19 |
| 2,500+ | $0.18 | $0.18 |
| 5,000+ | $0.17 | $0.17 |
| 7,500+ | $0.17 | $0.17 |
| 12,500+ | $0.16 | $0.16 |
| 17,500+ | $0.16 | $0.16 |
| 25,000+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The manufacturer page lists 12A. The datasheet provides a staged rating per AWG: up to 15A at 12 AWG, 10A at 14 AWG, and 9A at 18 AWG.
It supports 18-26 AWG solid or stranded wire.
-40°C to +125°C.
5 mating cycles.
Surface mount, right angle.
Yes, it is RoHS3 compliant and lead free.
