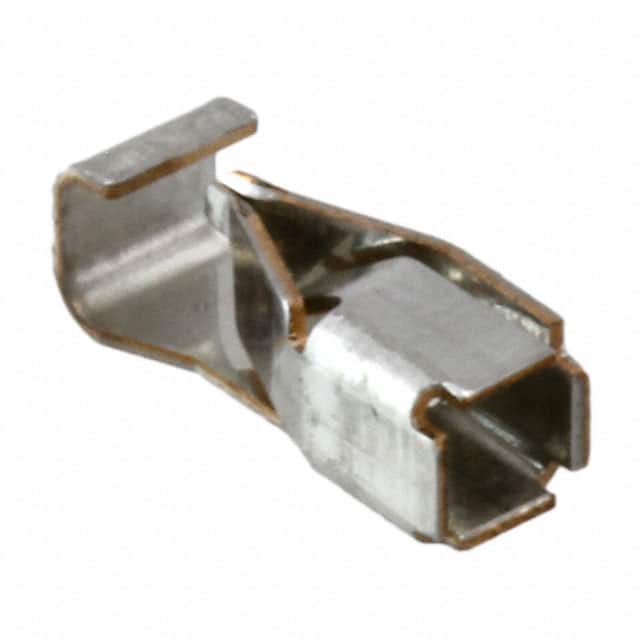

The Kyocera AVX 709296001002006 is a single-position poke-in wire contact from the 70-9296 series, designed for board-to-cable/wire applications in solid state lighting and industrial ruggedized systems. It features a dual-beam box contact design for mechanical stability and wire retention. The contact is surface mounted at a right angle and terminated via solder. It accepts solid or stranded wires from 22 to 28 AWG with a maximum insulation diameter of 1.5mm. The contact material is phosphor bronze with a pure tin finish. Electrical ratings include a voltage rating of 300V and current ratings of 11A (22 AWG), 9A (24 AWG), 7A (26 AWG), and 6A (28 AWG). The operating temperature range is -40°C to +125°C. The contact is provided in tape and reel packaging for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.23 | $0.23 |
| 10+ | $0.19 | $0.19 |
| 25+ | $0.18 | $0.18 |
| 50+ | $0.17 | $0.17 |
| 100+ | $0.17 | $0.17 |
| 250+ | $0.16 | $0.16 |
| 500+ | $0.15 | $0.15 |
| 1,000+ | $0.14 | $0.14 |
| 3,500+ | $0.13 | $0.13 |
| 7,000+ | $0.12 | $0.12 |
| 10,500+ | $0.12 | $0.12 |
| 17,500+ | $0.12 | $0.12 |
| 24,500+ | $0.11 | $0.11 |
| 35,000+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This contact accepts 22 to 28 AWG solid or stranded wire.
The maximum current rating is 11A when using 22 AWG wire. Ratings decrease to 9A for 24 AWG, 7A for 26 AWG, and 6A for 28 AWG.
The voltage rating is 300V.
Surface mount, right angle.
