| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,009 pcs
|
1009 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Housing Material | |
| Mounting Type | |
| Number of Contacts | |
| Number of Rows | |
| Orientation | |
| Pitch | |
| SVHC Present | |
| Termination Style | |
| Voltage Rating |

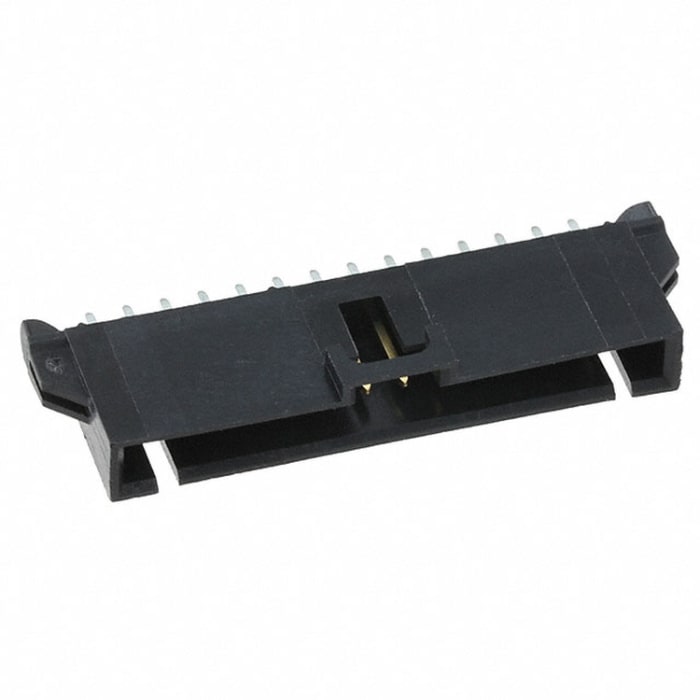

This Molex 70545 Series PCB header is designed for vertical mounting on printed circuit boards. It features 14 contacts arranged in a single row with a 2.54mm pitch, suitable for various electronic interconnections.
The header has a current rating of 3A and a voltage rating of 250V. The housing is constructed from high-temperature thermoplastic, ensuring durability in demanding environments. The contacts are made from brass and phosphor bronze with gold plating for reliable conductivity.
Operating within a temperature range of -40°C to 105°C, this shrouded header is designed for through-hole termination. Its robust construction and specifications make it suitable for a wide range of PCB applications requiring secure and stable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 3A.
The voltage rating is 250V.
The pitch is 2.54mm.
It has 14 contacts.
The operating temperature range is -40°C to 105°C.
The mounting type is PCB Mount with Through Hole termination.
