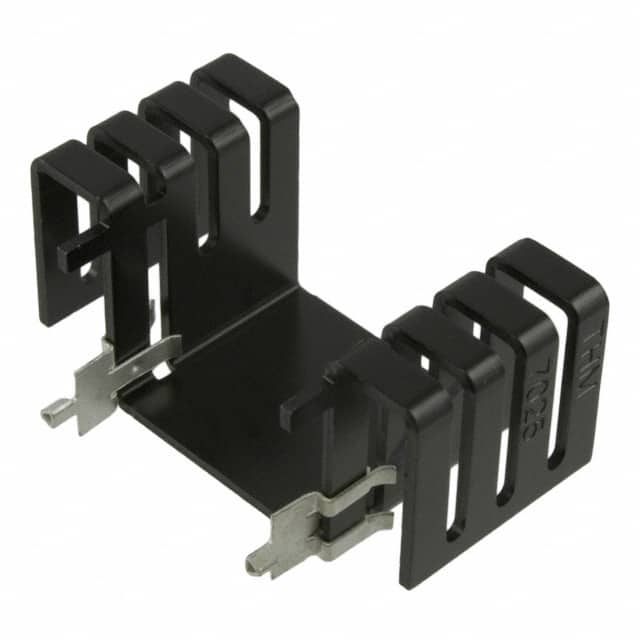

The 7025B-MTG is a board level, vertical heat sink designed for cooling TO-220 semiconductor packages. Manufactured by Aavid, Thermal Division of Boyd Corporation, this heat sink features a rectangular fin shape and is constructed from aluminum with a black anodized material finish.
Key thermal specifications include a nominal thermal resistance of 6.80°C/W under natural convection and 4.00°C/W at 300 LFM forced air flow. It can dissipate up to 6.0W at a 50°C temperature rise. The heat sink measures 28.70mm in length, 48.26mm in width, and has a fin height of 0.950 inches (24.13mm).
Attachment is achieved via bolt-on and PC pin methods, making it suitable for direct mounting to printed circuit boards. The vertical orientation and fin design optimize airflow for efficient heat dissipation in a variety of electronic cooling applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.84 | $3.84 |
| 10+ | $3.26 | $3.26 |
| 25+ | $3.11 | $3.11 |
| 50+ | $3.00 | $3.00 |
| 100+ | $2.79 | $2.79 |
| 192+ | $2.65 | $2.65 |
| 576+ | $2.57 | $2.57 |
| 1,152+ | $2.46 | $2.46 |
| 2,688+ | $2.24 | $2.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thermal resistance is 6.80°C/W under natural convection and 4.00°C/W at 300 LFM forced air flow.
It is designed to cool TO-220 packages.
It is made of aluminum with a black anodized finish.
The length is 28.70mm, width is 48.26mm, and fin height is 0.950 inches (24.13mm).
It is attached using bolt-on and PC pin methods.
