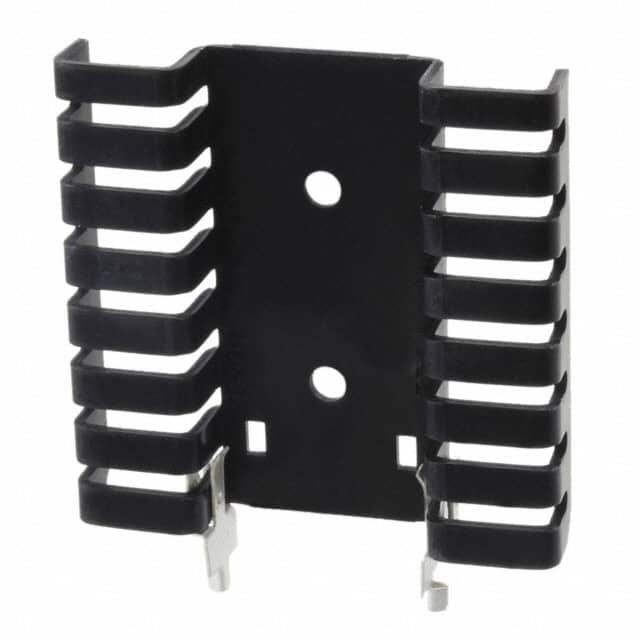

The 7022B-MTG is a board level vertical heat sink manufactured by Aavid, Thermal Division of Boyd Corporation. It is designed specifically for cooling TO-220 semiconductor packages. The heat sink is constructed from aluminum with a black anodized finish, providing good corrosion resistance and thermal emissivity. Its dimensions are 49.99mm length, 50.44mm width, and 9.52mm fin height, with a rectangular fin shape.
Thermal performance is characterized by a natural convection thermal resistance of 6.50°C/W and a forced air resistance of 1.75°C/W at 800 LFM. The heat sink can dissipate up to 10.0W with a 70°C temperature rise. Attachment is accomplished via bolt-on and PC pin methods, allowing secure mounting to the PCB.
The part is listed as RoHS3 compliant, MSL 1, and REACH unaffected, though these compliance statuses are unverified. It is suitable for a variety of thermal management applications where moderate power dissipation is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.16 | $5.16 |
| 10+ | $4.57 | $4.57 |
| 25+ | $4.48 | $4.48 |
| 500+ | $3.63 | $3.63 |
| 1,000+ | $3.46 | $3.46 |
| 2,000+ | $2.67 | $2.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The heat sink is designed to cool the TO-220 package.
According to the data, it is listed as RoHS3 Compliant, but this is unverified.
Natural thermal resistance is 6.50°C/W, and forced air resistance is 1.75°C/W at 800 LFM.
The heat sink is made of aluminum with a black anodized finish.
It uses bolt-on and PC pin attachment methods.
Length is 49.99mm, width is 50.44mm, and fin height is 9.52mm.
It can dissipate 10.0W at a 70°C temperature rise.
