| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
290 pcs
|
290 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Body Material | |
| Connector Style | |
| Connector Type | |
| Contact Material | |
| Current Rating | |
| Dielectric Strength | |
| Filter Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| SVHC Present | |
| Termination | |
| Voltage Rating | |
| current_rating (Nominal @ UL/CSA) | |
| current_rating (Nominal @ VDE/CCC) |

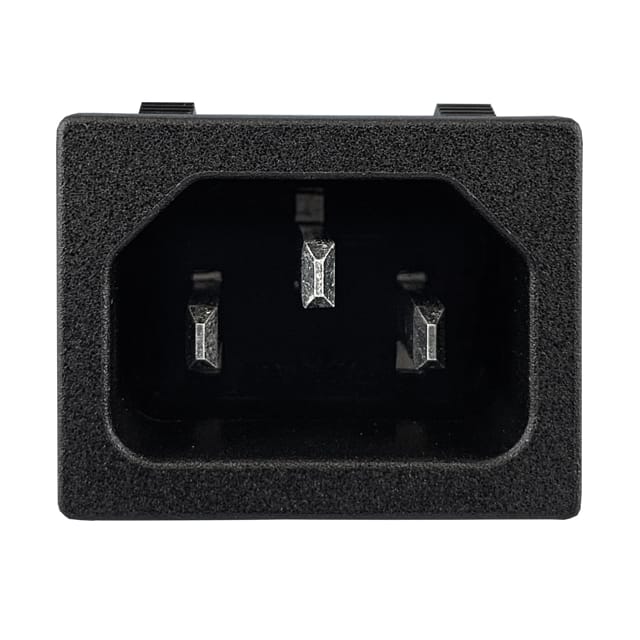

The Qualtek 701W-X2/02 is an IEC 60320 C14 universal snap-in AC power inlet designed for panel mounting. It features a nylon body, brass tin-plated contacts, and solder eyelet termination. The device is rated for 15A at 250VAC under UL/CSA standards and 10A at 250VAC under VDE/CCC standards.
Key electrical specifications include an insulation resistance of over 100 MΩ at 500 VDC and a dielectric strength of 2000 VAC for one minute. The connector style is IEC 320-C14 with a receptacle, male blades configuration. It accepts panel thicknesses from 0.81 mm to 1.50 mm, with a rectangular panel cutout of 27.00 x 20.00 mm.
This power inlet does not accommodate a fuse and is classified as an unfiltered commercial grade component. It has approvals from CCC, CSA, UL, and VDE. The body material is nylon, and the contact material is brass with tin plating. The part is RoHS3 compliant and REACH unaffected, with no SVHC above 0.1%.
The current rating is 15 A for UL/CSA and 10 A for VDE/CCC.
250 VAC.
Panel mount, snap-in.
3 positions.
Over 100 MΩ at 500 VDC.
2000 VAC for one minute.
CCC, CSA, UL, VDE.
