| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
520 pcs
|
520 pcs | On Request | 1 | On Request | On Request | 9534 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Length | |
| Material | |
| Material Finish | |
| Package Cooled | |
| SVHC Present | |
| Shape | |
| Type | |
| Width |

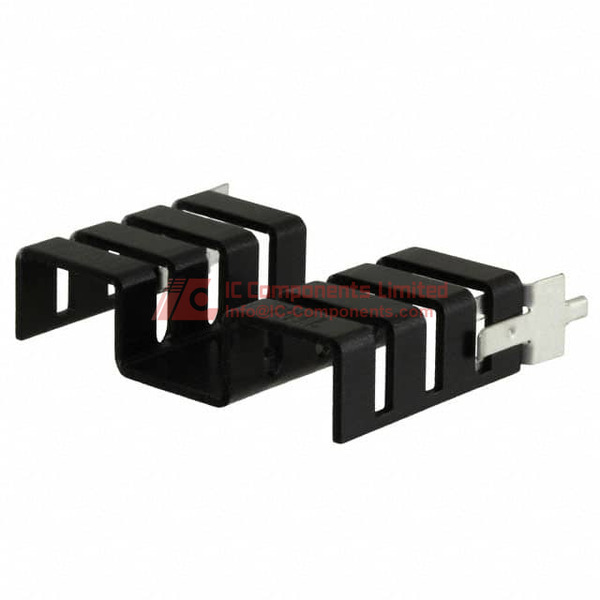

The 7019B-MT heat sink, manufactured by Aavid, Thermal Division of Boyd Corporation, is constructed from aluminum with a durable black anodized finish. It is designed for board-level vertical mounting and is suitable for cooling TO-220 packages.
Key thermal specifications include a thermal resistance of 11.00°C/W at natural convection and 8.00°C/W at 100 LFM forced air flow. The heat sink has a power dissipation rating of 3.0W at a 40°C temperature rise. Its dimensions are 1.000" (25.40mm) in length and 1.550" (39.37mm) in width, with a fin height of 0.375" (9.52mm).
The attachment method is bolt-on and PC pin, making it versatile for various assembly processes. The heat sink is packaged in bulk and is RoHS3 compliant. This component is ideal for applications requiring effective thermal management for TO-220 devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 7019B-MT is designed to cool TO-220 packages.
The thermal resistance is 11.00°C/W under natural convection.
The thermal resistance is 8.00°C/W at 100 LFM forced air flow.
It can dissipate 3.0W at a 40°C temperature rise.
It is made of aluminum with a black anodized finish.
Width is 39.37mm, length is 25.40mm, and fin height is 9.52mm.
It uses bolt-on and PC pin attachment.
