| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Admissible Ambient Temp. | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Characteristic | |
| China RoHS | |
| Climatic Category | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Industrial Grade | |
| Material - Endcaps | |
| Material Tube | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| Storage Conditions | |
| Unit Weight | |
| Voltage Rating |

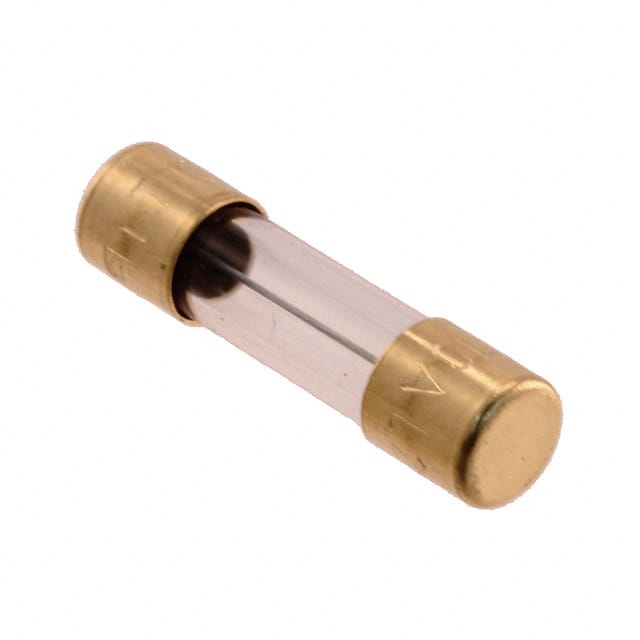

The Schurter 7010.3280 is a miniature glass tube fuse in the standard 5x20mm package. It is rated for 500mA at 220VAC with a fast-acting (quick-blow) response characteristic. The fuse has a breaking capacity of 60A at rated voltage. It is designed for use in a fuse holder for mounting. The operating temperature range is -40°C to 70°C. The fuse is RoHS and REACH compliant. With a melting I²t of 0.096 A²s, it provides reliable overcurrent protection for sensitive circuits. The glass tube and nickel-plated copper alloy endcaps ensure durability and corrosion resistance. This fuse is suitable for applications requiring low breaking capacity protection in power supplies, appliances, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.53 | $4.53 |
| 5+ | $3.76 | $3.76 |
| 10+ | $3.47 | $3.47 |
| 50+ | $2.88 | $2.88 |
| 100+ | $2.65 | $2.65 |
| 300+ | $2.33 | $2.33 |
| 500+ | $2.20 | $2.20 |
| 1,000+ | $2.02 | $2.02 |
| 5,000+ | $1.73 | $1.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
500 mA.
220 VAC.
60 A at rated voltage.
Fast Blow (quick-acting).
5mm x 20mm (5x20mm).
-40°C to 70°C.
Yes, it is RoHS3 compliant.
