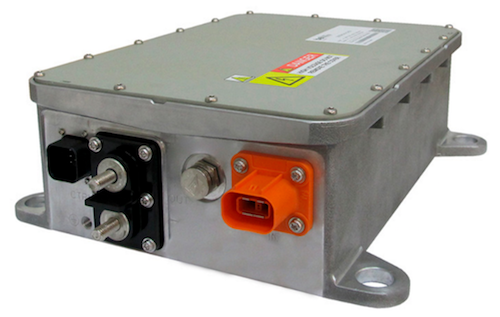

The Bel Power Solutions 700DNC40-24-CG is a 4kW DC/DC converter designed for hybrid and electric vehicles, suitable for powering low voltage accessories. This convection-cooled model operates with input voltages ranging from 400 to 850 VDC and delivers up to 3300 W of power.
Key features include very high efficiency up to 93%, low output voltage noise, and excellent dynamic response. The converter offers an adjustable output voltage via CAN bus, with a range of 22 to 32 VDC. It provides full galvanic isolation between input and output and includes comprehensive protection features such as over-temperature, output overvoltage, overcurrent, and reverse polarity protection.
Designed for demanding applications, this DC/DC converter has a protection degree of IP65 and IP67. It operates within a temperature range of -40°C to 45°C. The unit is chassis mounted and enclosed, making it suitable for various automotive and industrial environments.
With its robust design and advanced features, the 700DNC40-24-CG is ideal for medium to heavy-duty on- and off-highway vehicles, contributing to the electrification of transport systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The convection-cooled model delivers up to 3300 W of output power, while the liquid-cooled model can deliver up to 4000 W. The product data lists a typical output power of 3360W.
The input voltage range is from 400 VDC to 850 VDC.
The typical output voltage is 28 VDC, adjustable from 22 VDC to 32 VDC. The typical output current for the convection-cooled model is 120 ADC.
The operating temperature range is from -40°C to 45°C.
It includes over temperature, output overvoltage and overcurrent protection, and input and output reverse polarity protection.
The protection degree is rated at IP65 and IP67.
