| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Tap | |
| Current | |
| Height | |
| Mounting Type | |
| Power | |
| Primary Winding(s) | |
| Secondary Winding(s) | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight |

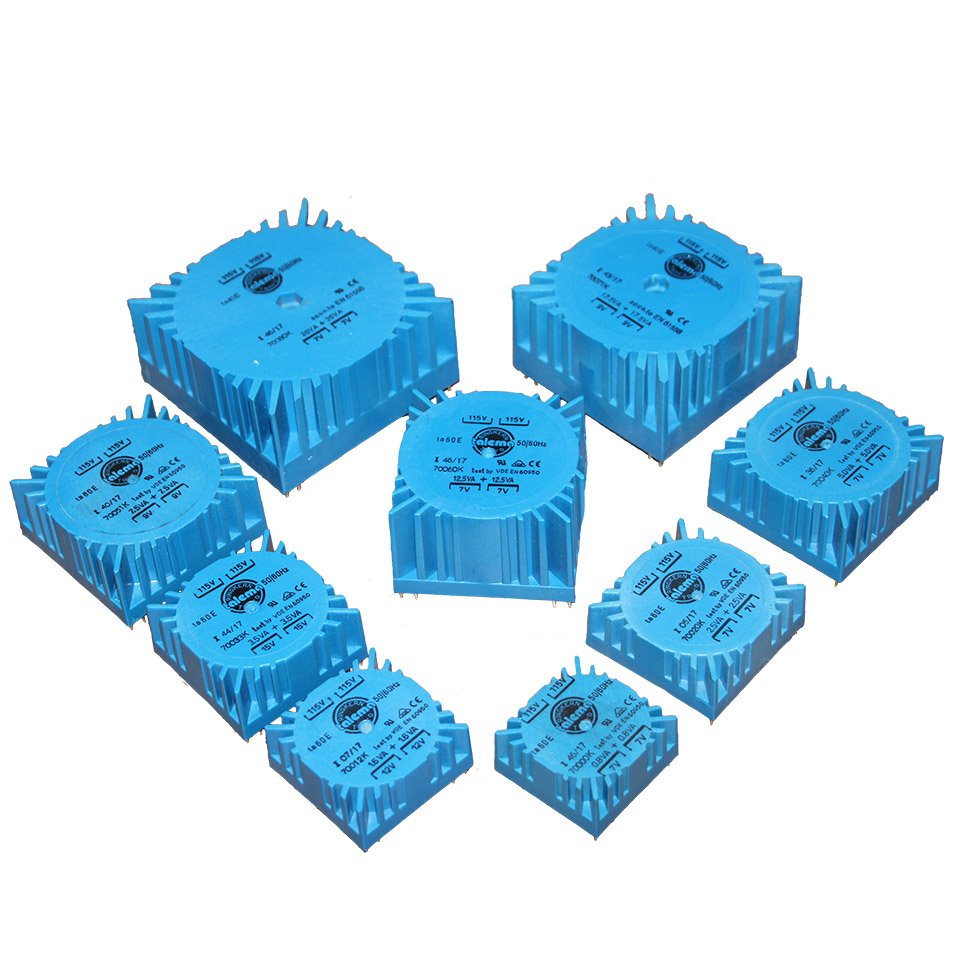

The TALEMA 70064K is a 25VA toroidal transformer from the 70000K series, designed for low profile PCB mounting. It offers dual 115V primaries that can be connected in parallel or series, and dual secondary windings providing flexibility in voltage output. This transformer is suitable for through-hole mounting and terminates with PC pins.
Key electrical specifications include a 25VA power rating. The secondary windings can be configured for parallel operation at 18V with a current of 1.388A, or series operation at 36V with a current of 694mA. The primary windings are dual 115V, suitable for 50/60Hz operation. The transformer has a test voltage of 4.0 kV between primary and secondary.
Mechanically, the unit measures 60.00mm in length and width, with a height of 37.50mm, and weighs 388.28g. It features a through-hole mounting type and PC pin termination. The insulation system is recognized for Class A (105°C) and meets Class E (125°C) requirements. The maximum ambient operating temperature is +60°C for ratings up to 25VA.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TALEMA 70064K transformer has a power rating of 25VA.
The 70064K transformer offers dual secondary windings, providing 18V in parallel configuration or 36V in series configuration.
The TALEMA 70064K transformer is designed for through-hole mounting.
The maximum ambient operating temperature for the TALEMA 70064K transformer is +60°C.
The insulation system is recognized for Class A (105°C) and meets all requirements of Class E (125°C).
