| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
420 pcs
|
420 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions per Row | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination |

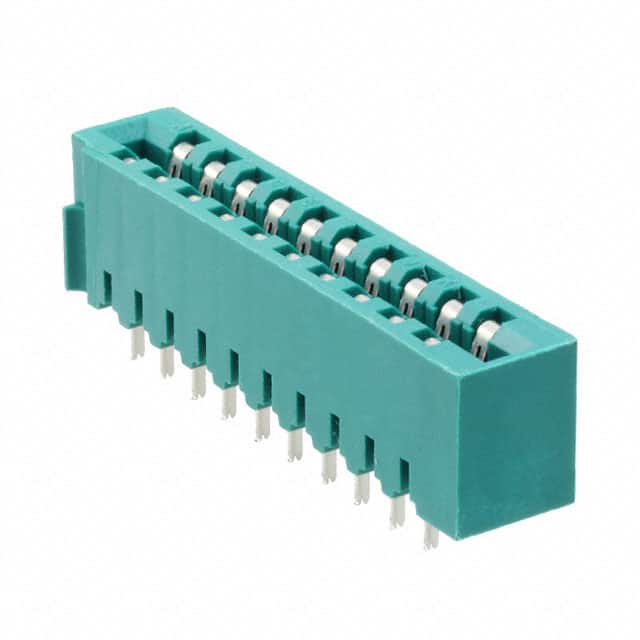

The TE Connectivity AMP Connectors 7-530666-2 is a 20-position edgeboard connector featuring a dual readout configuration with 2 rows of 10 contacts each. The connector uses a Non Specified - Dual Edge card type design compatible with standard edge cards. It offers a 3.96mm (0.156") contact pitch and accepts card thicknesses from 0.055" to 0.070" (1.40mm to 1.78mm).
The connector is through-hole mounted with solder terminals for reliable mechanical attachment. Contacts are made of phosphor bronze with a gold finish of 30µin (0.76µm), providing good electrical performance and corrosion resistance. The housing is colored green.
This connector is designed for operating temperatures ranging from -55°C to 105°C, making it suitable for various industrial and commercial applications.
| Qty | Low | High |
|---|---|---|
| 840+ | $38.82 | $38.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions in a dual read configuration with 2 rows of 10 positions each.
3.96mm (0.156")
Through hole with solder termination.
-55°C to 105°C
Phosphor bronze with gold finish (30µin / 0.76µm).
0.055" to 0.070" (1.40mm to 1.78mm).
