| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,200 pcs
|
7200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

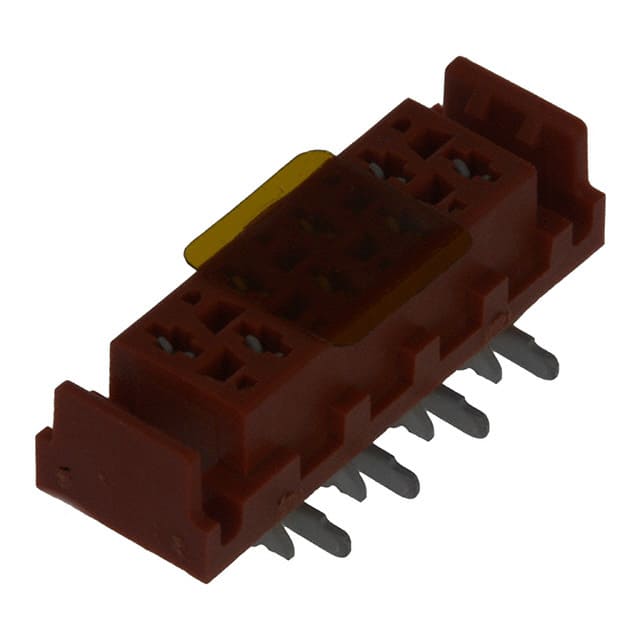

The TE Connectivity 7-338069-8 is an 8-position receptacle connector designed for board-to-board or cable applications. It features a surface mount termination with solder contacts and a friction lock fastening type for secure mating. The connector has a 2.54mm pitch and 0.100" row spacing, with an insulation height of 5.30mm. The housing is red and made of material with UL94 V-0 flammability rating. Contacts are finished with tin. The operating temperature range is -40°C to 105°C, and the voltage rating is 100VDC. This connector is pick-and-place compatible and capable of reflow soldering up to 260°C. It is RoHS, REACH, ELV, and China RoHS compliant. The part is available in tape and reel packaging (DigiKey part numbers A99433TR-ND, A99433CT-ND, A99433DKR-ND).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.37 | $2.37 |
| 10+ | $2.02 | $2.02 |
| 100+ | $1.71 | $1.71 |
| 900+ | $1.44 | $1.44 |
| 1,800+ | $1.38 | $1.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2.54mm (0.100").
100VDC.
Surface mount.
-40°C to 105°C.
Tin.
Yes, it is EU RoHS compliant per Directive 2011/65/EU.
