| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,400 pcs
|
14400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Length | |
| Connector Type | |
| Contact Base Material | |
| Contact Current Rating (Max) | |
| Contact Finish | |
| Contact Mating Area Plating Material Thickness | |
| Contact Type | |
| Contact Underplating Material | |
| Fastening Type | |
| Features | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| PCB Contact Termination Area Plating Material Thickness | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Method | |
| Termination Post & Tail Length | |
| Voltage Rating |

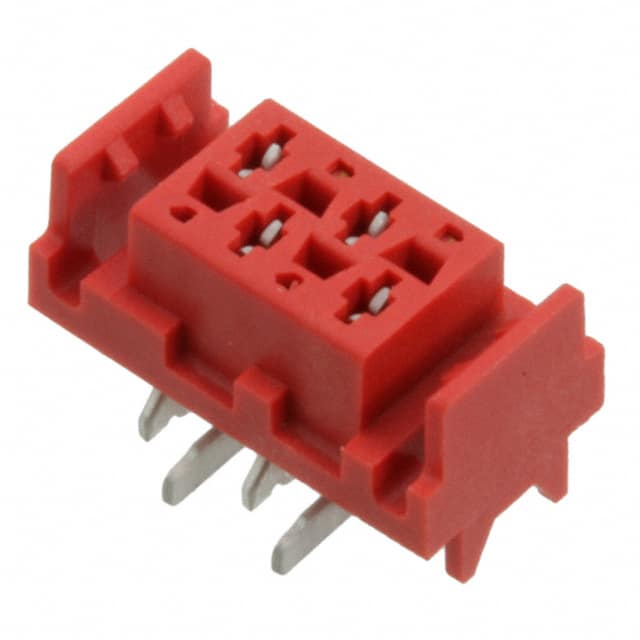

The TE Connectivity 7-338069-4 is a Micro-MaTch Industrial series receptacle connector designed for board-to-board or cable applications. It features 4 positions arranged in 2 rows with a 1.27mm centerline pitch and 2.54mm row spacing. The connector uses socket contacts with a tin mating area plating and a phosphor bronze base material with nickel underplating.
This surface mount connector has a vertical PCB mount orientation and uses solder termination. It includes a friction lock for secure mating and is housed in a red PA 4.6 insulator with a UL94 V-0 flammability rating. The connector measures 9.7mm in length with a 6.9mm height and a 5.3mm termination post length.
Electrical ratings include a 1.5A current rating, 100VAC operating voltage, and 1000MΩ insulation resistance. The operating temperature range is -40°C to 105°C. The connector is pick and place compatible for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.49 | $1.49 |
| 10+ | $1.26 | $1.26 |
| 100+ | $1.07 | $1.07 |
| 900+ | $0.92 | $0.92 |
| 1,800+ | $0.88 | $0.88 |
| 2,700+ | $0.85 | $0.85 |
| 4,500+ | $0.82 | $0.82 |
| 6,300+ | $0.80 | $0.80 |
| 9,000+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has a 1.27mm centerline pitch with 2.54mm row spacing.
The current rating is 1.5A.
The operating voltage is 100VAC.
The connector is surface mount with solder termination.
The operating temperature range is -40°C to 105°C.
The contact base material is phosphor bronze with nickel underplating and a tin mating area plating.
The RoHS status is listed as RoHS3 Compliant but is unverified.
