| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,250 pcs
|
2250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Voltage Rating |

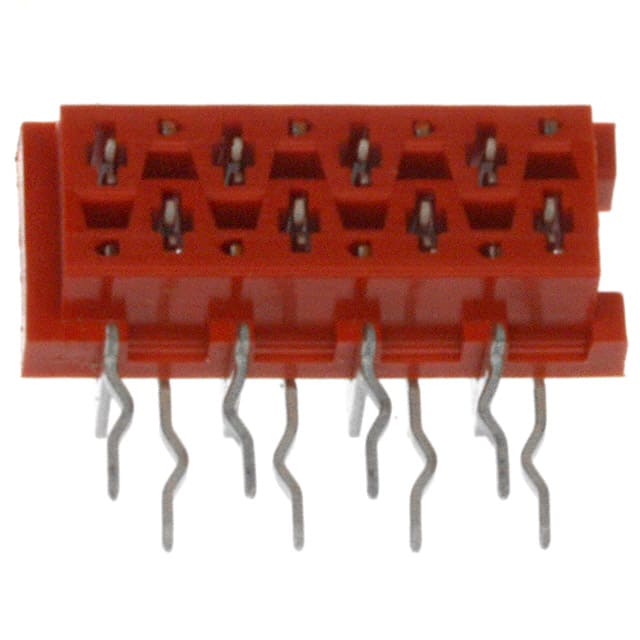

The TE Connectivity 7-215460-8 is an 8-position receptacle connector from the Micro-MaTch family. It has a 2.54mm pitch and a 2.54mm row spacing, with all 8 positions loaded. The connector uses forked tin-plated contacts and is designed for board-to-board or cable connections with a push-pull fastening mechanism. It mounts via through-hole, right-angle configuration with kinked pin solder termination. The red insulation has a height of 5.80mm. Electrical rating is 100VDC. Operating temperature ranges from -40°C to 105°C, and the housing material meets UL94 V-0 flammability standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
| 10+ | $1.93 | $1.93 |
| 100+ | $1.64 | $1.64 |
| 250+ | $1.54 | $1.54 |
| 500+ | $1.46 | $1.46 |
| 750+ | $1.42 | $1.42 |
| 1,250+ | $1.37 | $1.37 |
| 1,750+ | $1.34 | $1.34 |
| 2,500+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2.54 mm.
100 VDC.
Through hole, right angle.
-40°C to 105°C.
Tin.
UL94 V-0.
