| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,750 pcs
|
12750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Base Material | |
| Contact Current Rating (Max) | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Contact Underplating Material | |
| Fastening Type | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Entry Location | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage (AC) | |
| PCB Mount Retention Type | |
| Pitch | |
| Row Spacing | |
| Row-to-Row Spacing | |
| Style | |
| Termination | |
| UL Rating | |
| Voltage Rating | |
| Voltage Rating DC | |
| ul_file_number |

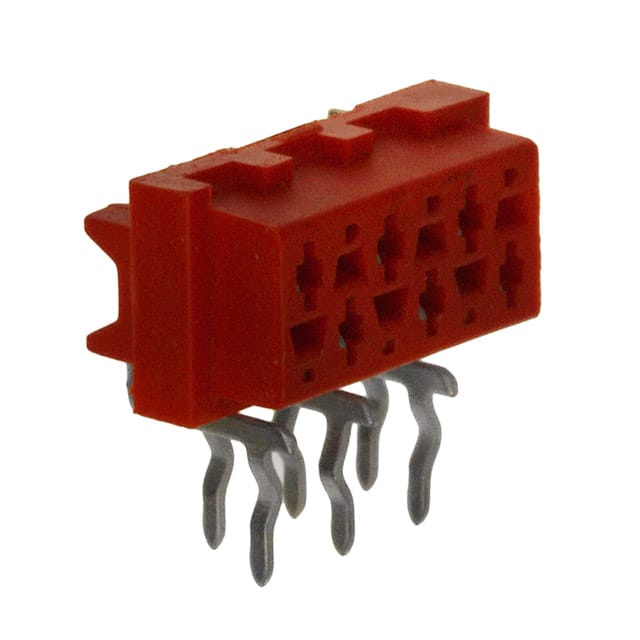

The TE Connectivity 7-215460-6 is a 6-position receptacle connector designed for cable-to-board and board-to-board applications. It features a 2.54 mm pitch, 2 rows, and a right-angle orientation for through-hole mounting. The connector uses kinked pin solder termination for secure PCB retention and is part of the Micro-MaTch Industrial series.
The housing is made of glass-filled PBT with a UL94 V-0 flammability rating, ensuring durability and safety in industrial environments. Contacts are phosphor bronze with tin plating, providing reliable conductivity and resistance to corrosion. The electrical ratings include 1.5 A per contact, 100 VAC/VDC, and an insulation resistance of 1000 MΩ.
Operating temperature ranges from -40°C to 105°C, making it suitable for a wide range of conditions. The connector is recognized under UL file number E28476. Its push-pull fastening and side mating entry simplify assembly in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.49 | $1.49 |
| 10+ | $1.26 | $1.26 |
| 100+ | $1.07 | $1.07 |
| 250+ | $1.00 | $1.00 |
| 500+ | $0.96 | $0.96 |
| 750+ | $0.93 | $0.93 |
| 1,250+ | $0.90 | $0.90 |
| 1,750+ | $0.88 | $0.88 |
| 2,500+ | $0.85 | $0.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.54 mm.
1.5 A per contact.
100 VAC or 100 VDC.
Through hole, right angle.
-40°C to 105°C.
Kinked pin, solder.
