| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,500 pcs
|
8500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Length (A max) | |
| Pitch | |
| Row Spacing | |
| Standard Package (Box) | |
| Standard Package (Reel) | |
| Style | |
| Termination | |
| Voltage Rating | |
| Voltage Rating DC |

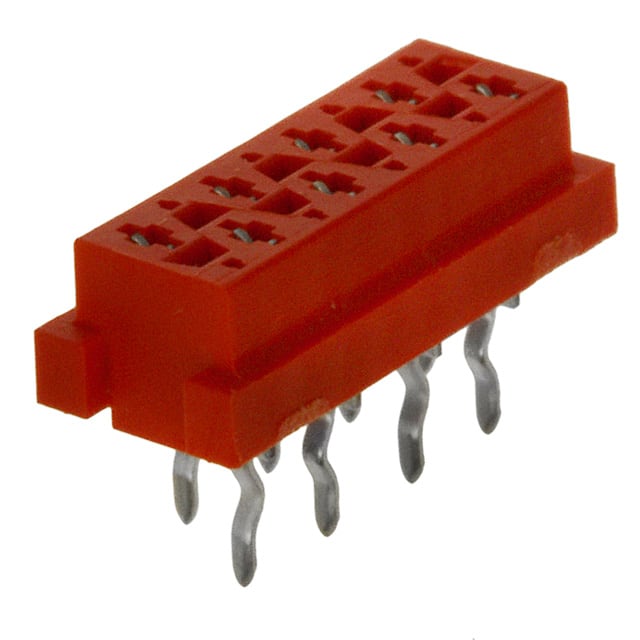

The TE Connectivity 7-215079-8 is a female receptacle from the Micro-MaTch series, designed for board-to-board or cable connections. It features 8 positions arranged in 2 rows with a 2.54mm pitch, and uses through-hole mounting with kinked pin solder termination. Contacts are made of phosphor bronze with a tin over nickel finish, providing reliable conductivity and corrosion resistance. The red polybutylene terephthalate (PBT) insulator meets UL94 V-0 flammability rating and stands up to operating temperatures from -40°C to 105°C. This connector is rated for 100 VDC and is available in both tape-and-reel (2500 per reel) and box (250 per box) packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.61 | $1.61 |
| 10+ | $1.36 | $1.36 |
| 100+ | $1.16 | $1.16 |
| 250+ | $1.09 | $1.09 |
| 500+ | $1.03 | $1.03 |
| 750+ | $1.01 | $1.01 |
| 1,250+ | $0.97 | $0.97 |
| 1,750+ | $0.95 | $0.95 |
| 2,500+ | $0.92 | $0.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 8 positions, all loaded, in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm.
The voltage rating is 100 VDC.
It uses through-hole mounting with kinked pin solder termination.
The operating temperature range is -40°C to 105°C.
The contacts have a tin over nickel finish on phosphor bronze material.
