| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89,100 pcs
|
89100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25,200 pcs
|
25200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Material Change | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Voltage Rating |

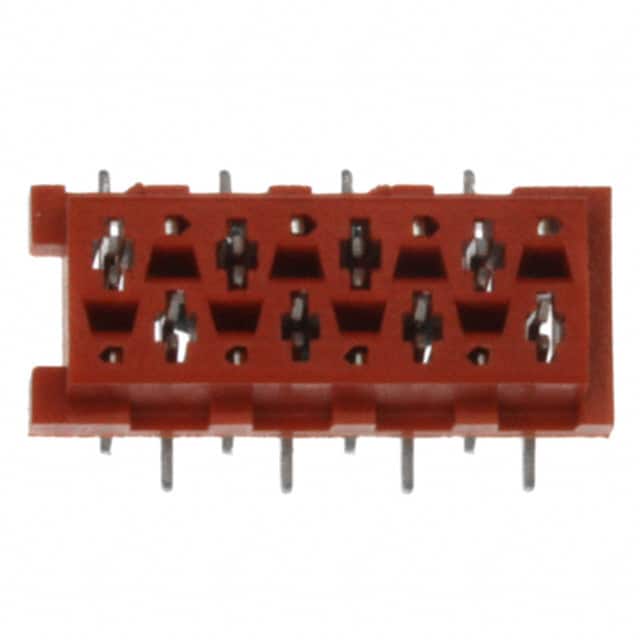

The TE Connectivity 7-188275-8 is a surface mount receptacle connector from the Micro-MaTch series. It features 8 positions arranged in 2 rows with a 2.54mm pitch and 0.100" row spacing. The connector uses forked contacts with tin finish and has a push-pull fastening mechanism. The red insulation has a height of 5.30mm and is rated UL94 V-0 for flammability. Operating temperature range is -40°C to 105°C with a voltage rating of 100VDC. The connector supports board-to-board or cable applications and includes a pick and place feature for automated assembly. Packaging uses blister tape (PS clear) for higher temperature tolerance up to 90°C/60% RH as per PCN E-13-019830. This connector is suitable for various electronic assemblies requiring a compact, reliable interconnection. The surface mount design enables efficient automated soldering processes. The tin contact finish provides good solderability and corrosion resistance. The push-pull fastening allows easy mating and unmating without tools.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.05 | $2.05 |
| 10+ | $1.74 | $1.74 |
| 100+ | $1.48 | $1.48 |
| 900+ | $1.27 | $1.27 |
| 1,800+ | $1.21 | $1.21 |
| 2,700+ | $1.17 | $1.17 |
| 4,500+ | $1.13 | $1.13 |
| 6,300+ | $1.11 | $1.11 |
| 9,000+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions arranged in 2 rows.
2.54mm (0.100").
100VDC.
Surface mount.
-40°C to 105°C.
Tin.
Push-pull.
