| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Contact Finish | |
| Contact Material | |
| ELV | |
| Features | |
| Frame Type | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Lifecycle Status | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Solder Process Capability | |
| Termination | |
| Termination Style | |
| Type |

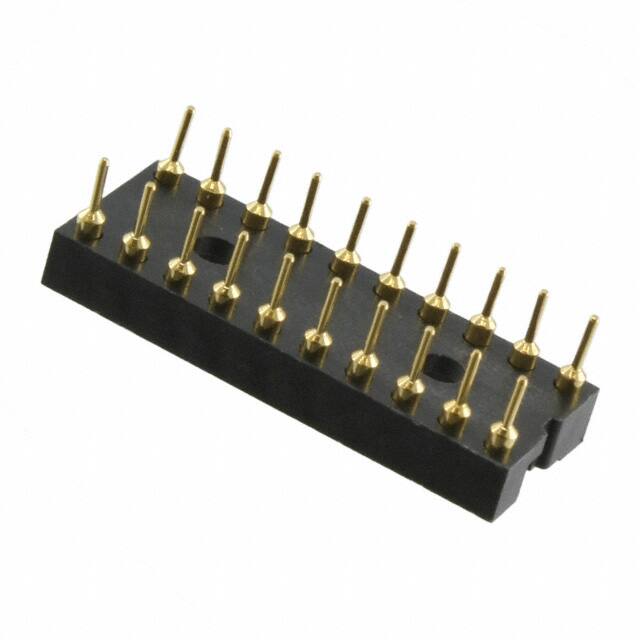

The TE Connectivity 7-1437531-8 (520-AG10D) is a 20-position DIP socket designed for through hole mounting with solder termination. It features a 2.54mm (0.100") pitch and a closed frame construction, providing reliable mechanical support for IC packages. The contacts are made of copper alloy with a gold finish, ensuring low resistance and corrosion resistance.
This socket operates over a temperature range of -55°C to 125°C and is wave solder capable to 265°C, making it suitable for high-temperature assembly processes. The part is classified as obsolete by the manufacturer and is not compliant with EU RoHS, EU ELV, China RoHS, or halogen-free requirements due to the presence of lead.
Designed for use with standard DIP packages, this socket is commonly employed in prototyping, production, and applications requiring durable, gold-plated contacts. Its closed frame design enhances structural integrity during repeated insertion and extraction cycles.
| Qty | Low | High |
|---|---|---|
| 960+ | $3.11 | $3.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This socket has 20 positions arranged in a 2x10 grid.
The pitch is 2.54mm (0.100").
Through hole mounting with solder termination.
-55°C to 125°C.
Gold finish over copper alloy contacts.
No, it is not compliant with EU RoHS 2011/65/EU due to lead content.
