| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,540 pcs
|
1540 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

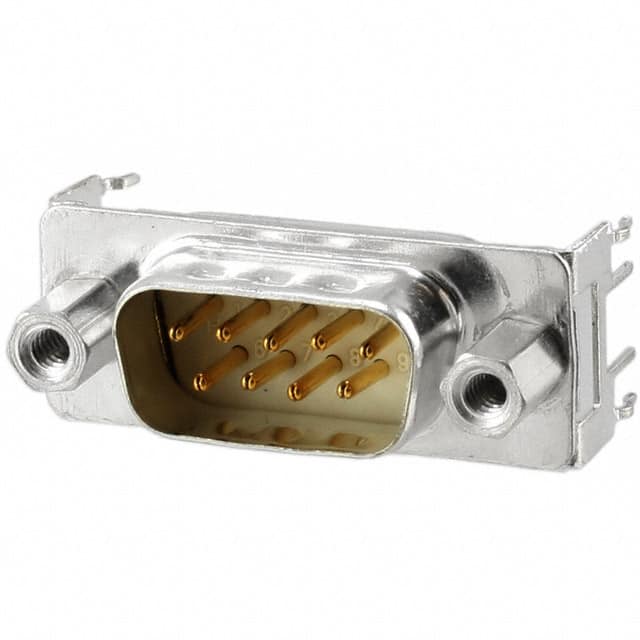

The TE Connectivity 7-1393740-8 is a 9-position D-Sub plug connector, featuring male pins arranged in 2 rows. The connector uses a standard shell size 1 (DE, E) and is designed for through-hole mounting with solder termination, making it suitable for vertical PCB installation.
The contacts are gold-plated for reliable signal transmission and corrosion resistance. The shell is made of steel with a tin-plated finish, and includes ground strap and grounding indents for enhanced EMI protection. The connector also features a flange with female screwlocks (4-40) on the mating side for secure connection.
The insulator material has a UL94 V-0 flammability rating, indicating flame retardant properties. This connector is intended for signal contact type applications within D-Sub connector systems.
This connector has 9 positions arranged in 2 rows.
The mounting type is Through Hole with solder termination.
The shell size and connector layout is 1 (DE, E).
The contacts have a Gold finish.
