| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,749 pcs
|
2749 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| ELV | |
| Features | |
| Flange Feature | |
| Halogen Content | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Solder Process Capability | |
| Termination | |
| Termination Style |

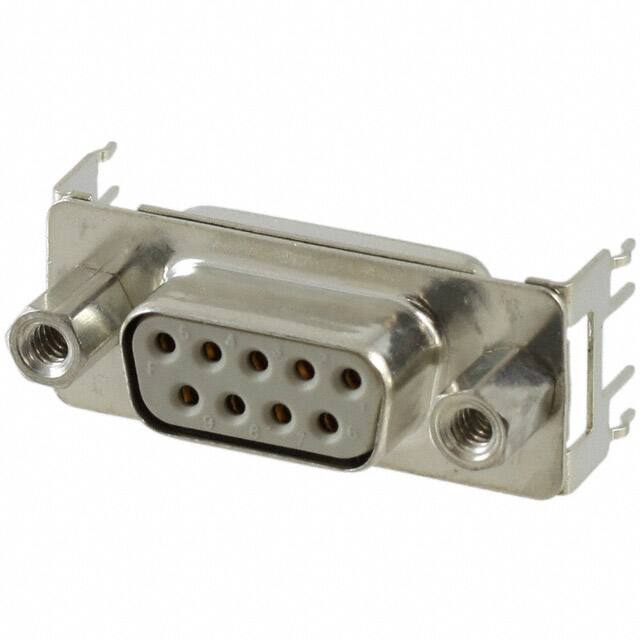

The TE Connectivity 7-1393740-0 is a D-Sub receptacle connector featuring 9 positions arranged in 2 rows of female sockets. It uses shell size 1 (DE-E) layout and is designed for through hole mounting with solder termination. The contacts are gold plated for reliable signal transmission, and the steel shell is tin plated for corrosion resistance. A female screwlock (4-40) on the mating side ensures secure connection, and an integrated ground strap provides EMI protection. The insulator is rated UL94 V-0 for flammability, and the connector is wave solder capable to 265°C. Compliance includes EU RoHS (with exemptions for lead) and ELV, while REACH declares SVHC above threshold (lead 0.35%). The part is not low halogen. This connector is suitable for industrial, telecom, and data communication applications where reliable D-Sub connections are required.
9 positions.
Through hole.
Gold.
Steel, Tin Plated.
UL94 V-0.
Wave solder capable to 265°C.
Yes, compliant with exemptions (EU RoHS Directive 2011/65/EU, exemption 6(a)-I).
