| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43 pcs
|
43 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
43 pcs
|
43 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination |

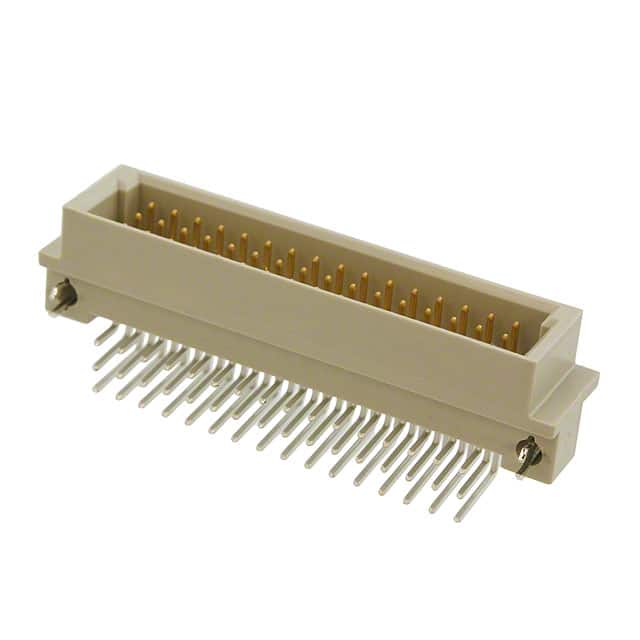

This TE Connectivity DIN 41612 connector (part number 7-1393644-4) is a plug with 48 male pin positions, fully loaded across 3 rows. It uses a C/2 (1/2 C) style per DIN 41612 standards. The connector offers a 2.54mm pitch and features a through hole right angle mounting style with solder termination, making it suitable for perpendicular board-to-board connections in backplane systems.
Contact finish is gold or gold-palladium, providing reliable signal integrity. An integrated board lock feature aids in secure mechanical retention during assembly. This part is classed as Level Class 2, indicating high reliability requirements.
The connector is designed for use in Eurocard form factor systems and other industrial electronic backplane applications requiring a compact, high-density interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.47 | $5.47 |
| 10+ | $4.65 | $4.65 |
| 25+ | $4.36 | $4.36 |
| 60+ | $4.10 | $4.10 |
| 120+ | $3.90 | $3.90 |
| 300+ | $3.66 | $3.66 |
| 540+ | $3.51 | $3.51 |
| 1,020+ | $3.35 | $3.35 |
| 2,520+ | $3.15 | $3.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
48 positions, all loaded across 3 rows.
2.54mm (0.100 inches).
Through hole, right angle mounting with solder termination.
Gold or gold-palladium.
Yes, it includes a board lock for secure attachment to the PCB.
