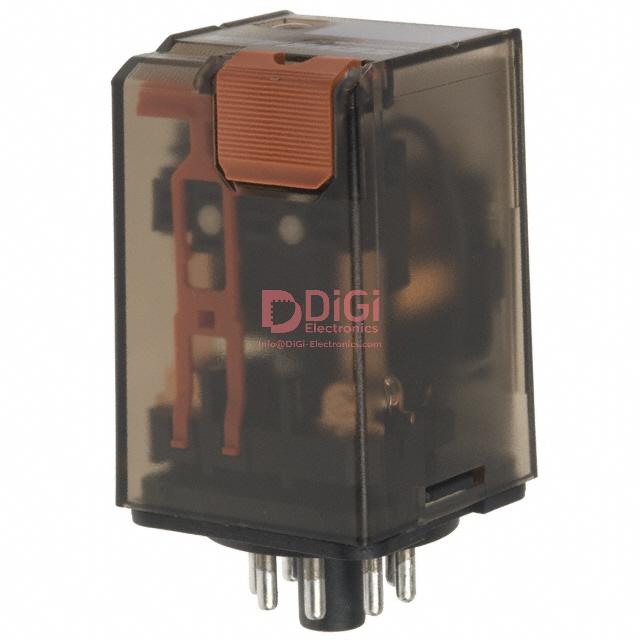

7-1393091-5 This TE Connectivity MT321125 is a general purpose relay with a 3PDT contact form. It features a 10A contact rating and a 125VDC coil voltage.
Mfr Part #:

7-1393091-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This TE Connectivity MT321125 is a general purpose relay with a 3PDT contact form. It features a 10A contact rating and a 125VDC coil voltage.
✓ Total Stock: 144 pcs
$ Price Range: $1.00

7-1393091-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
144 pcs
On Request
144 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7-1393091-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
View Similar Products (0)

7-1393091-5 Description

Short technical summary and product information.

The TE Connectivity MT321125 is a general purpose relay designed for various applications. It features a 3PDT (3 Form C) contact configuration, allowing for versatile switching capabilities.



Key electrical specifications include a contact rating of 10A and a maximum switching voltage of 400VAC. The relay operates with a 125VDC coil voltage and has a coil current of 9.6 mA. It also specifies a must-operate voltage of 93.75 VDC and a must-release voltage of 1 VDC.



This relay is socketable, facilitating easy installation and maintenance. The termination style is Plug In, 11 Pin (Octal). The product status is listed as Obsolete, indicating it may be nearing end-of-life.



Additional features include a test button for operational checks. The series is identified as MT, SCHRACK.

7-1393091-5 Quick Information

Product Type: General Purpose Relay
Series: MT, SCHRACK
Canonical Name: TE Connectivity Potter & Brumfield Relays MT321125 General Purpose Relay
Subcategory: General Purpose Relay

7-1393091-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

7-1393091-5 Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

7-1393091-5 Features

  • 3PDT (3 Form C) contact configuration.
  • 10A contact rating.
  • 125VDC coil voltage.
  • Socketable mounting type.
  • 11 Pin (Octal) termination style.

7-1393091-5 Applications

  • Used in industrial control panels
  • Suitable for automation switching circuits
  • Ideal for relay replacement in control systems
  • Applied in automation and control applications

7-1393091-5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the contact form of the MT321125 relay?

The MT321125 relay has a 3PDT (3 Form C) contact form.

What is the current rating for the MT321125 relay?

The contact rating for the MT321125 relay is 10 A.

What is the coil voltage for the MT321125 relay?

The coil voltage for the MT321125 relay is 125 VDC.

How is the MT321125 relay mounted?

The MT321125 relay is socketable.

What is the termination style of the MT321125 relay?

The termination style is Plug In, 11 Pin (Octal).

What is the product status of the MT321125 relay?

The product status is Obsolete.
