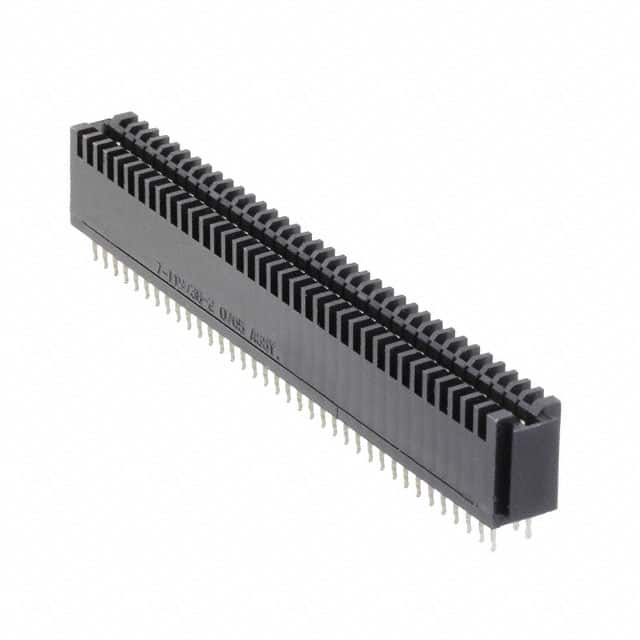

7-119738-2 TE Connectivity 7-119738-2 edgeboard connector with 72 positions, 2 rows, dual readout, 0.100" pitch, through hole mounting, press-fit termination.
Mfr Part #:

7-119738-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 7-119738-2 edgeboard connector with 72 positions, 2 rows, dual readout, 0.100" pitch, through hole mounting, press-fit termination.
✓ Total Stock: 588 pcs

7-119738-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
588 pcs
On Request
588 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7-119738-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Gender
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Read Out
Tape & Reel
Termination
Termination Style
View Similar Products (0)

7-119738-2 Description

Short technical summary and product information.

The TE Connectivity 7-119738-2 is a dual female edgeboard connector designed for through-hole mounting with press-fit termination. It features 72 positions arranged in 2 rows with a 0.100" (2.54mm) pitch, supporting dual readout. The contacts are made of phosphor bronze with a gold finish of 30.0µin (0.76µm), ensuring reliable electrical performance. The connector accepts card thicknesses from 0.054" to 0.071" (1.37mm to 1.80mm).



The housing is black and the connector is designed for non-specified dual edge cards. The press-fit termination style provides a solderless connection, reducing assembly time. This connector is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).



Ideal for applications requiring a high-density connection solution, this edgeboard connector is suitable for use in various electronic systems where reliable card edge connections are needed.

7-119738-2 Quick Information

Product Type: Edgeboard Connector
Canonical Name: TE Connectivity 7-119738-2 Edgeboard Connector, Female, 72 Positions, 2 Rows, 0.100" Pitch, Through Hole, Press-Fit
Subcategory: Edgeboard Connectors

7-119738-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

7-119738-2 Features

  • 72 positions in 2 rows with 0.100" pitch.
  • Dual readout female edgeboard connector.
  • Press-fit termination for solderless assembly.
  • Gold plated phosphor bronze contacts with 30µin finish.
  • Accepts card thickness from 0.054" to 0.071".

7-119738-2 Applications

  • Used in computer motherboard expansions.
  • Ideal for industrial control backplanes.
  • Suitable for high-density card edge connections.
