| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Voltage | |
| Junction Capacitance | |
| Mounting Type | |
| Peak Forward Surge Current | |
| Storage Temperature |

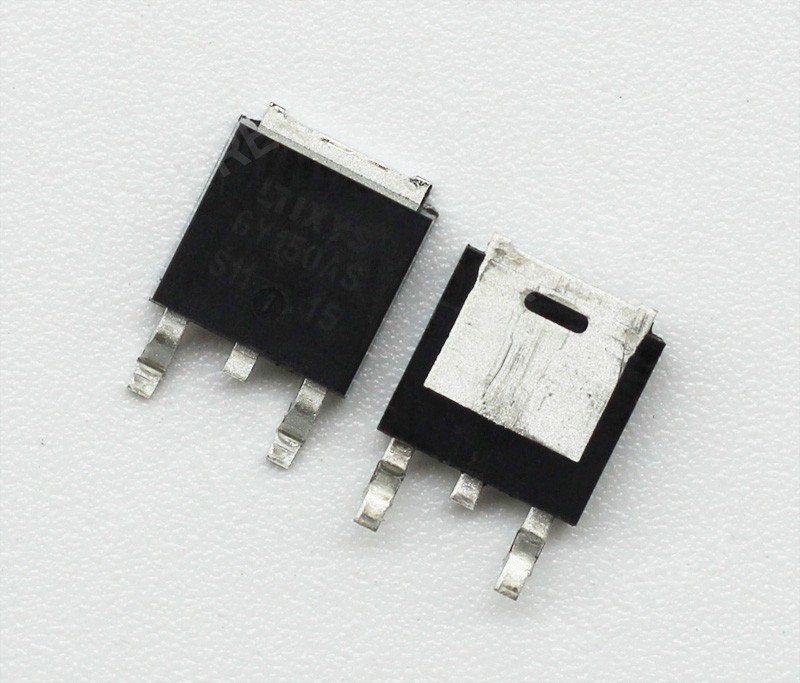

The IXYS 6Y150AS is a Schottky diode designed for efficient rectification and low-loss switching. It is housed in a TO-252 / DPAK surface-mount package.
Key electrical characteristics include a repetitive reverse blocking voltage of 150V, an average forward current of 6A, and a typical forward voltage of 0.62V at 6A and 125°C. The device also offers a low reverse leakage current of 0.3mA maximum at 25°C.
This diode is suitable for various power applications such as SMPS, DC-DC converters, freewheeling diode circuits, and polarity protection. Its surface-mount package and robust thermal performance make it a versatile component for power management boards and automotive electronic circuits.
With a junction-to-case thermal resistance of 3.0 K/W and an operating junction temperature range of -55°C to +175°C, the 6Y150AS is designed for reliable operation in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 6Y150AS diode has a maximum reverse repetitive voltage (VRRM) of 150V.
The average forward current (IFAV) for the 6Y150AS diode is 6A.
The typical forward voltage (VF) for the 6Y150AS diode is 0.62V at 6A and 125°C.
The 6Y150AS diode is supplied in a TO-252 / DPAK package.
Typical applications include SMPS, DC-DC converters, freewheeling diode, and polarity protection.
