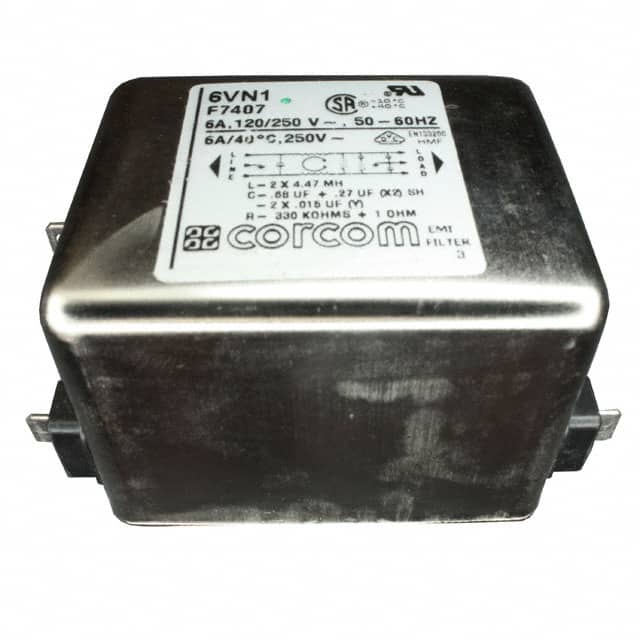

6VN1 Single phase power line filter module rated 250VAC and 6A. Chassis mount with quick connect terminals.
Mfr Part #:

6VN1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Single phase power line filter module rated 250VAC and 6A. Chassis mount with quick connect terminals.
✓ Total Stock: 8 pcs

6VN1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

6VN1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Configuration
Current
Filter Type
Frequency
Inductance
Lead Style
Mounting Type
Operating Temperature
Termination Style
Voltage
View Similar Products (0)

6VN1 Description

Short technical summary and product information.

The TE Connectivity 6VN1 is a single phase, single stage power line filter module designed for general purpose EMI filtering applications. It is rated for 250VAC at 6A continuous current with a nominal inductance of 4.47 mH and operates at 50/60Hz.



The filter features chassis mount installation with quick connect termination for easy integration into power supply inputs and industrial equipment. It has an operating temperature range of -10°C to 40°C and is approved by CSA, UR, and VDE safety agencies.



This component is suitable for reducing conducted electromagnetic interference on AC power lines in a variety of electronic systems. Its compact design and standard approvals make it a reliable choice for compliance with regulatory requirements.

6VN1 Quick Information

Product Type: Power Line Filter Module
Canonical Name: Single Phase Power Line Filter Module, 250VAC, 6A, Chassis Mount
Subcategory: Single Phase Filter

6VN1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

6VN1 Features

  • Single phase EMI filter for 250VAC lines.
  • Rated for 6A continuous current.
  • Chassis mount with quick connect terminals.
  • Operating temperature range -10°C to 40°C.
  • Approved by CSA, UR, and VDE.

6VN1 Applications

  • Used in general purpose power line filtering.
  • Suitable for industrial equipment.
  • Ideal for reducing conducted EMI.
  • Common in power supply input stages.

6VN1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the 6VN1 filter?

The voltage rating is 250 VAC.

What is the current rating of the 6VN1?

The current rating is 6 A.

What is the operating temperature range?

The operating temperature range is -10°C to 40°C.

What mounting style does the 6VN1 use?

It uses chassis mount with quick connect terminals.

Is the 6VN1 RoHS compliant?

The internal database lists it as RoHS3 compliant, but this is unverified.

What safety approvals does the 6VN1 have?

It is approved by CSA, UR, and VDE.

What is the inductance value of the 6VN1?

The nominal inductance is 4.47 mH.
