| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,260 pcs
|
2260 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Forward Voltage | |
| Input Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Current | |
| Output Type | |
| Power Dissipation | |
| Propagation Delay | |
| Storage Temperature | |
| Voltage |

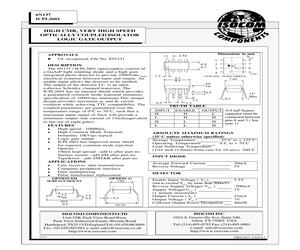

The ISO 6N137SMT/R is a high-speed, optically coupled isolator designed for logic gate output applications. It offers robust isolation with a maximum rating of 2500V, ensuring signal integrity in noisy environments. This component supports data rates up to 10 Mbps, making it suitable for fast digital communication.
Operating within a supply voltage range of 4.5V to 5.5V, the 6N137SMT/R features a typical forward voltage of 1.75V and can handle an input current of up to 20 mA. The output stage provides an open collector configuration. The device is housed in an 8-SMD, Gull Wing package, designed for surface mounting.
With a typical rise and fall time of 40ns and 10ns respectively, and a propagation delay of 75ns, this optoisolator is well-suited for applications requiring precise timing. Its commercial operating temperature range is from 0°C to 70°C, and it boasts a high common mode transient immunity of 5 kV/µs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum isolation voltage for the 6N137SMT/R is 2500V.
The nominal data rate for the 6N137SMT/R is 10 Mbps.
The 6N137SMT/R operates with a supply voltage between 4.5V and 5.5V.
The operating temperature range for the 6N137SMT/R is 0°C to 70°C.
The 6N137SMT/R features an open collector output type.
The 6N137SMT/R is supplied in an 8-SMD, Gull Wing package for surface mounting.
