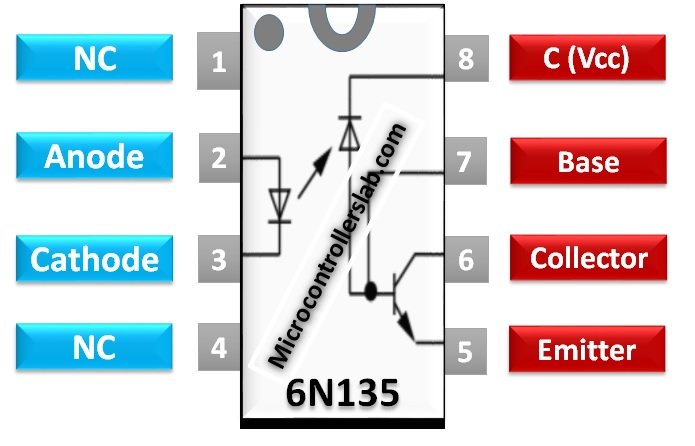

6N135 The 6N135 is a high-speed optocoupler from TF, featuring a 1 Mbit/s data rate and 5300 VRMS isolation voltage. It is suitable for applications requiring electrical insulation between circuits.
Mfr Part #:

6N135

Available from 1 distributors
Mfr Name: TF
TF
The 6N135 is a high-speed optocoupler from TF, featuring a 1 Mbit/s data rate and 5300 VRMS isolation voltage. It is suitable for applications requiring electrical insulation between circuits.
✓ Total Stock: 17 pcs
$ Price Range: $0.33

6N135 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
17 pcs
On Request
17 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

6N135 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Forward Current
Lead Spacing
Mounting Type
Output Type
Reverse Voltage
Tape & Reel
View Similar Products (0)

6N135 Description

Short technical summary and product information.

The 6N135 is a single-channel, high-speed optocoupler designed for reliable signal transmission between electrically separated circuits. It utilizes a GaAIAs infrared emitting diode coupled with a photodiode and a high-speed transistor output.



Key electrical specifications include an isolation test voltage of 5300 VRMS, a high bit rate of 1 Mbit/s, and a bandwidth of 2 MHz. The device features an open-collector output, allowing for flexible interfacing. It operates with a maximum forward current of 25 mA and a maximum reverse voltage of 5V.



This optocoupler is housed in a DIP-8 plastic package, suitable for through-hole mounting. Its design provides high common-mode interference immunity, making it robust in noisy environments. The 6N135 is an equivalent to the 6N136, differing primarily in Current Transfer Ratio (CTR).



Applications for the 6N135 include providing electrical isolation in digital systems, power supply monitoring, and interfacing between microcontrollers and high-voltage circuits where signal integrity and safety are paramount.

6N135 Quick Information

Product Type: Optocoupler
Canonical Name: 6N135 High Speed Optocoupler, Photodiode with Transistor Output
Subcategory: Transistor Output Optocoupler

6N135 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

6N135 Estimated Pricing

Qty Low High
1+ $0.33 $0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

6N135 Features

  • High speed data transmission up to 1 Mbit/s.
  • 5300 VRMS isolation test voltage.
  • 2 MHz bandwidth for signal integrity.
  • Open-collector output for flexibility.
  • DIP-8 package for through-hole mounting.

6N135 Applications

  • Ideal for isolating microcontroller communication lines.
  • Used in industrial motor drive control circuits.
  • Suitable for switching power supply feedback loops.
  • Applied in medical equipment signal isolation.
  • Utilized in PLC input/output module design.

6N135 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum isolation voltage for the 6N135?

5300 VRMS

What is the maximum data rate supported by this optoisolator?

1 Mbit/s

What type of output configuration does the 6N135 use?

Open collector

What is the maximum forward current rating?

25 mA

What package style is used for the 6N135?

DIP-8
