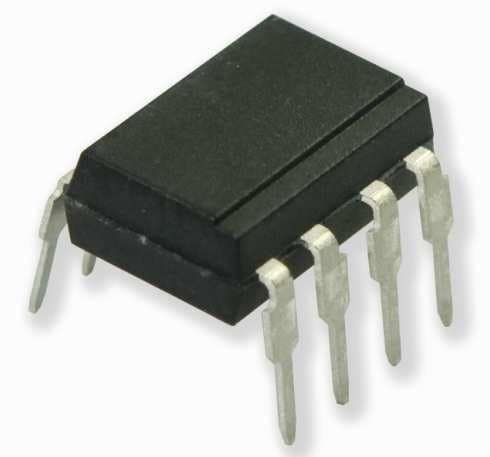

The Vishay 6N135 is a high-speed optocoupler featuring a GaAIAs infrared emitting diode optically coupled with an integrated photo detector. This device is suitable for transmitting signals between two electrically separated circuits up to frequencies of 2 MHz.
Key electrical specifications include a high bit rate of 1 Mbit/s and an isolation test voltage of 5300 VRMS. It also boasts a bandwidth of 2 MHz and high common-mode interference immunity. The optocoupler has an open-collector output and allows for external base wiring.
Packaged in a DIP-8 plastic package, the 6N135 is designed for reliable performance. It operates within a temperature range of 0 °C to 70 °C. The device supports a maximum forward current of 25 mA and a maximum output current of 8 mA.
This optocoupler is suitable for applications requiring high-speed data isolation and protection against voltage transients. Its robust design and specifications make it a valuable component in various electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.59 | $1.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation test voltage is 5300 VRMS.
The maximum data rate is 1 Mbit/s.
The operating temperature range is 0 °C to 70 °C.
The 6N135 is available in a PDIP-8 package and is supplied in tubes.
The typical CTR is 16%, with a minimum of 7% and a typical maximum of 19%.
