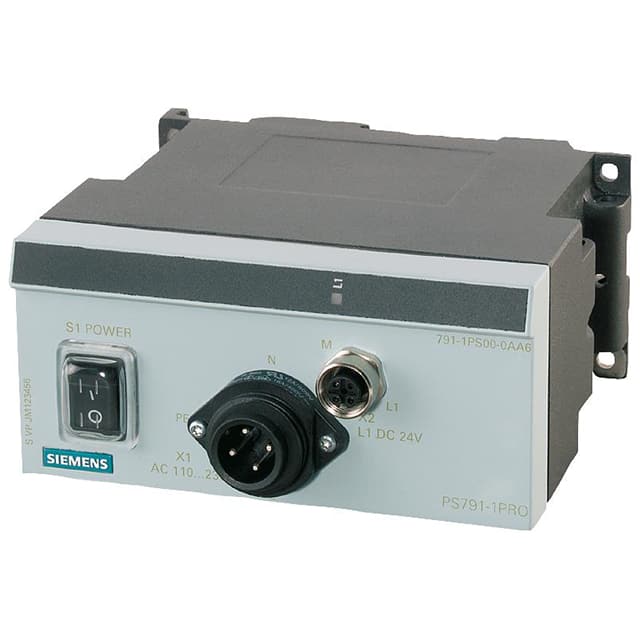

The Siemens 6GK57911PS000AA6 is a robust AC/DC power supply unit designed for industrial applications. It features a 10W power rating, accepting an input voltage range of 90 to 265V AC and delivering a regulated 24V DC output with a 7% tolerance.
This enclosed power supply unit is built with a metal enclosure and offers IP65 protection, making it suitable for harsh environments. It includes convenient M12 connectors for both AC input and DC output, simplifying integration. The unit also features an On/Off switch for operational control.
Key specifications include a 0.42A rated output current, a 20ms buffering time, and a switching frequency of 100kHz. The operating temperature range is -20°C to 60°C, with storage and transport temperatures ranging from -40°C to 85°C. It meets safety standards such as EN 60950 and has marine classification from BV.
Dimensions are 130mm in length, 125mm in width, and 60mm in height, with a net weight of 0.7kg. This power supply is ideal for applications requiring reliable power conversion in demanding conditions.
The rated output voltage is 24 V DC.
The operating temperature range is -20°C to 60°C.
The protection class is IP65.
The supply voltage is 90 to 265 V AC.
The rated output current is 0.42 A.
The supplied active power is typically 10 W.
