6EP4297-8HB10-0XY0
Siemens
The Siemens 6EP4297-8HB10-0XY0 is a SITOP BUF8600 buffer module designed for the PSU8600 system. It provides 40A of output current with a 300ms buffering time.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Mounting Type | |
| Output Current |

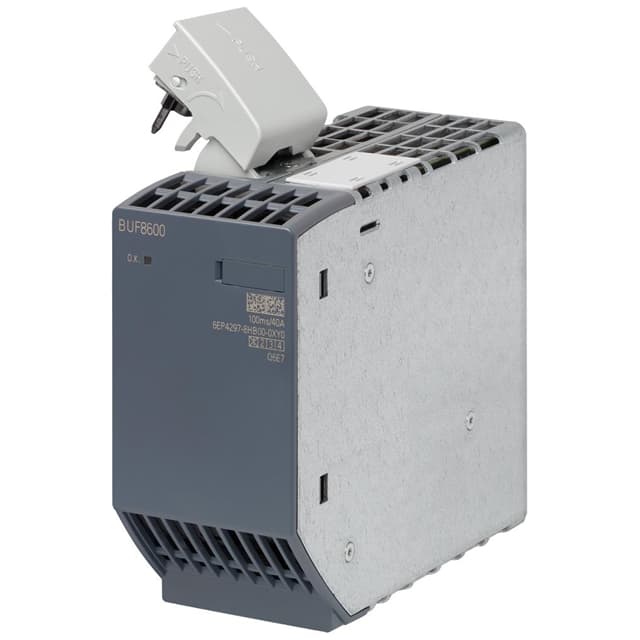

The Siemens 6EP4297-8HB00-0XY0 is a SITOP BUF8600 buffer module, specifically designed to work with the PSU8600 power supply unit. This module utilizes electrolytic capacitors for energy storage, offering maintenance-free operation.
It provides a buffer capacity of 100 ms when operating with a 40 A load current, ensuring continuity during brief power interruptions. The module features a rated output current of 40 A and is protected with an IP20 rating.
Connectivity is established via an integrated connector, and it mounts onto a standard 35x15 mm DIN rail. The operating temperature range is -25 °C to +60 °C with natural convection. Signaling is provided through a 3-color LED indicating operating status.
Approvals include CE marking, UL, cULus-Listed, cCSAus, CB certificate, and EAC approval, along with shipbuilding approvals from ABS and DNV GL. EMC standards for emitted interference (EN 55022 Class B) and interference immunity (EN 61000-6-2) are met.
The buffer capacity is 100 ms with a 40 A load current.
The rated output current is 40 A.
It uses electrolytic capacitors for energy storage.
The protection class is IP20.
The operating temperature range is -25 °C to +60 °C with natural convection.
It snaps onto a 35x15 mm DIN rail (EN 60715).
Yes, it has CE marking.
