| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Connection Type | |
| For Use With | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Storage Temperature | |
| Terminal Size |

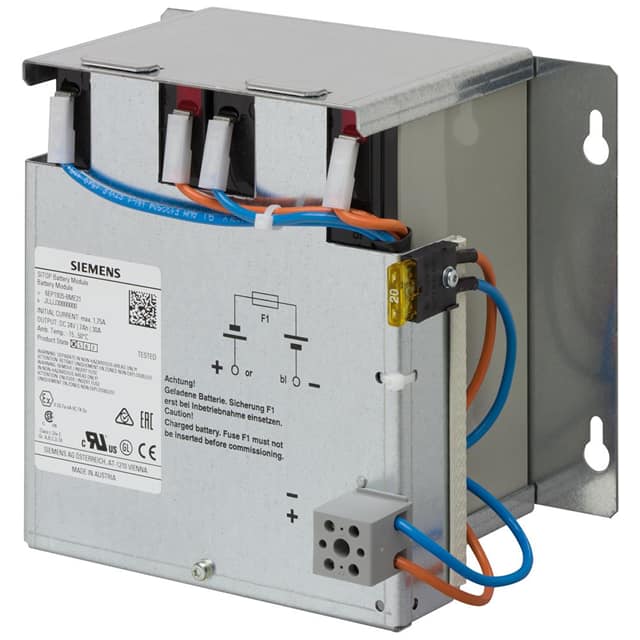

The Siemens 6EP19356ME21 is a maintenance-free, sealed lead-acid battery module designed to provide backup power for SITOP DC UPS modules. With a rated output voltage of 24V and a capacity of 7Ah, this module ensures continuous operation during power interruptions.
This battery module operates within an ambient temperature range of -15°C to +50°C during operation, and -20°C to +50°C during transport and storage. It features a charging current of up to 1.75A and includes a 20A/32V battery fuse for short-circuit protection. The module is designed with a valve control for overload protection and has an IP00 protection class.
Mechanical specifications include spring-loaded terminals for power supply connections, an enclosure width of 186mm, height of 168mm, and depth of 121mm. It supports wall mounting and can be screwed onto a flat surface. The typical service life at 20°C is 4 years, decreasing with higher operating temperatures.
Approvals include CE marking, UL approval, and EAC approval, making it suitable for various industrial environments. It is designed for use with Siemens SITOP UPS systems.
The rated output voltage of the Siemens 6EP19356ME21 battery module is 24 V DC.
The maximum charging current for the 6EP19356ME21 battery module is 1.75 A.
The Siemens 6EP19356ME21 battery module can operate in an ambient temperature range of -15°C to +50°C.
The typical service life of the 6EP19356ME21 battery module at 20°C is 4 years, assuming capacity falls to 80% of original capacity.
The Siemens 6EP19356ME21 battery module can be wall mounted or screwed onto a flat surface using keyhole mounting.
