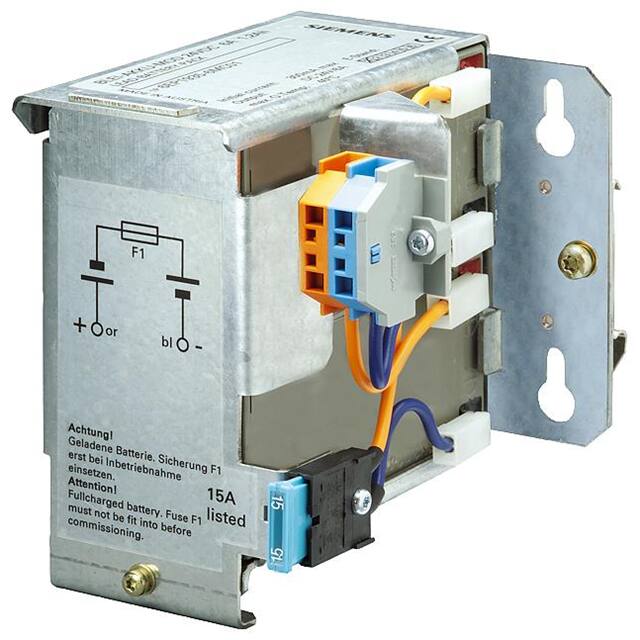

The Siemens 6EP19356MC01 is a maintenance-free, sealed lead-acid battery module designed as an accessory for SITOP DC UPS systems. It provides a rated output voltage of 24V and a capacity of 1.2Ah, ensuring continuous power supply during outages.
This battery module is built to withstand a wide operating temperature range from -15°C to +50°C, making it suitable for diverse industrial environments. It features a solid-state circuitry blade-type fuse for short-circuit protection and valve control for overload protection, ensuring safe operation. The module is designed for easy installation with spring-loaded terminals and supports both wall and standard rail mounting.
With a typical service life of 4 years at 20°C, the 6EP19356MC01 offers a dependable solution for uninterruptible power supply needs. It also carries important certifications including CE, UL, and EAC approvals, along with shipbuilding approvals from ABS and DNV GL.
The rated output voltage at DC is 24 V.
The maximum charging current is 0.3 A.
The typical service life at 20°C is 4 years.
The operating temperature range is -15°C to +50°C.
It is protected by a battery fuse rated at 7.5 A/32 V with solid-state circuitry.
It uses spring-loaded terminals, with one screw terminal each for +BAT and -BAT, suitable for 0.08 to 2.5 mm² wire.
Yes, it has CE marking and UL approval (cURus-Recognized).
