| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

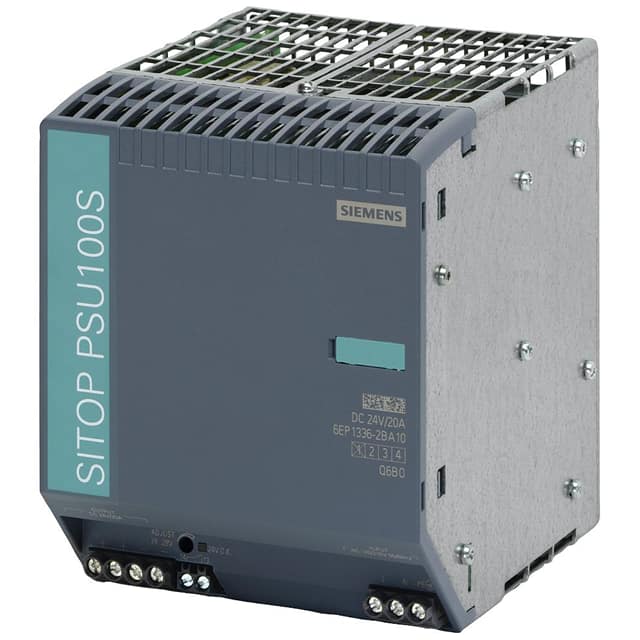

The Siemens 6EP13362BA10 is an enclosed, chassis mount AC/DC converter from the SITOP PSU100S series. It delivers a stable 24VDC output at a rated current of 20A, with a maximum supplied active power of 480W. The unit operates with a high efficiency of 90% and offers a wide input voltage range of 85-132 VAC and 176-264 VAC, automatically selecting the appropriate range.
Key features include adjustable output voltage (24-28V), overvoltage overload capability, and a buffering time of at least 20ms for power failures. The operating temperature range is 0°C to 70°C with derating. This power supply is suitable for industrial, ITE (Commercial), and hazardous location applications, carrying approvals such as CB, cCSAus, CE, CSA, cUL, cULus, and UL.
Designed for reliability, it has a response delay of maximum 1.5s and a voltage increase time of typically 50ms. The dimensions are 150.0mm x 115.0mm x 145.0mm. It also includes features like IP20 protection and universal input capability.
The rated output voltage is 24 VDC, adjustable between 24 and 28 V.
The rated output current is 20 A.
The input voltage range is 85 to 132 VAC at 120V nominal and 176 to 264 VAC at 230V nominal.
The efficiency is 90%.
The operating temperature range is 0°C to 70°C with derating.
It uses chassis mount.
