| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

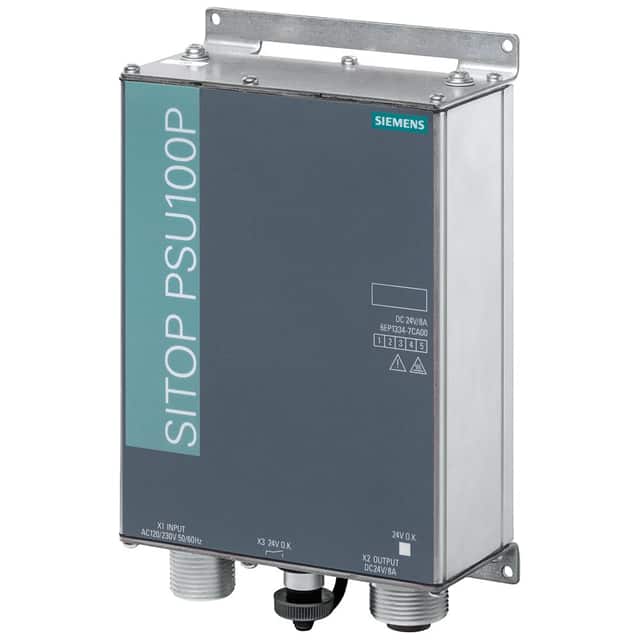

The Siemens 6EP13347CA00 is an enclosed AC DC converter from the SITOP PSU100P series, designed for reliable power conversion in industrial and ITE (Commercial) environments. It accepts a wide input voltage range of 85 to 264 VAC and provides a stable, isolated 24V DC output at a rated current of 8A.
This power supply boasts a high efficiency of 93.6%, minimizing power loss and heat generation. Key electrical specifications include a relative overall voltage tolerance of 3%, precise control under varying load and input conditions, and a maximum residual ripple of 50mV. It features internal overvoltage protection and a relay contact output for signaling '24V OK' status.
With a compact chassis mount design, the 6EP13347CA00 measures 60.5mm in length, 120.0mm in width, and 181.0mm in height. It operates within an ambient temperature range of -25°C to 60°C. The unit is compliant with standards such as 60950-1 and UL 508, and carries CE, CSA, and UL approval agencies.
85-264VAC (47-63Hz).
24VDC at 8A, 192W.
93.6%.
-25°C to 60°C.
CE, CSA, UL. Complies with standards 60950-1 and UL 508.
No, the output voltage is fixed at 24VDC.
