| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

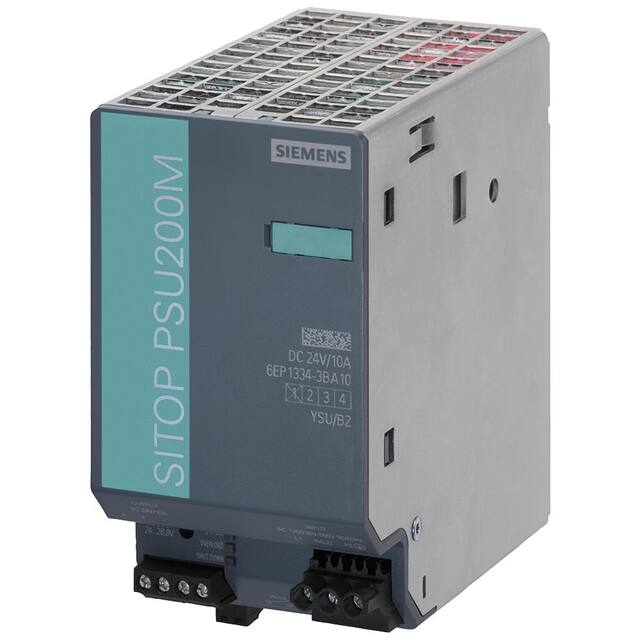

The Siemens 6EP13343BA10 is a stabilized AC DC converter from the SITOP PSU200M series, designed for reliable power conversion. It provides a 24V DC output at a rated current of 10A, delivering a total power of 240W. The unit accepts a wide input voltage range, supporting both single-phase (85-264V AC) and two-phase (176-550V AC) operation.
Key features include an adjustable output voltage from 24V to 28.8V, allowing for fine-tuning to specific application needs. The converter boasts high efficiency of 91% and offers essential protections such as inrush current limitation and overload capability. Its robust design is suitable for chassis mounting and operates within an ambient temperature range of -25°C to 70°C with derating.
This enclosed power supply is built to meet industry standards, indicated by its compliance with 60950-1. It is suitable for ITE (Commercial) applications and features a relay contact for a '24V OK' signal, enhancing system monitoring and control. The unit's dimensions are 121.0mm in length, 70.0mm in width, and 125.0mm in height.
The rated output voltage is 24V DC, and it is adjustable from 24V to 28.8V.
The rated output current is 10A.
The input voltage range is 85-264 VAC for single-phase and 176-550 VAC for two-phase operation.
The operating temperature range is -25°C to 70°C, with derating applied.
This unit is designed for chassis mounting.
The efficiency is 91%.
