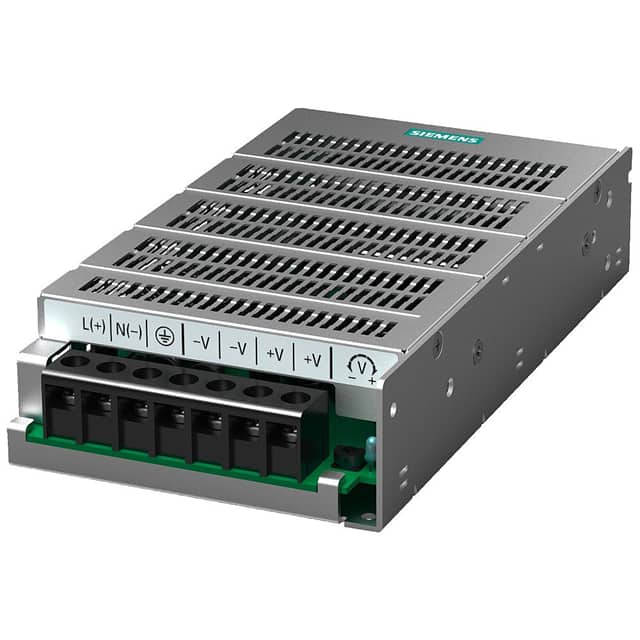

The Siemens 6EP13331LD00 is a stabilized, enclosed AC/DC power supply designed for industrial applications. It operates from a 1-phase AC input voltage range of 85-264V AC and provides a controlled, isolated DC output voltage of 24V at a rated current of 6.2A, delivering up to 149W of active power.
Key features include a wide range input, adjustable output voltage from 22-28V via potentiometer, and high efficiency of 86%. The unit is designed for chassis mounting and offers protection against overvoltage and short circuits with electronic shutdown and automatic restart. Its compact dimensions are 38.0mm L x 97.0mm W x 178.0mm H.
This power supply is suitable for applications requiring reliable power conversion in industrial environments, including hazardous locations and ITE commercial settings. It meets safety standards such as EN 60950-1 and UL 508.
The input voltage range is 85 to 264 VAC at 47-63 Hz.
The output is 24V DC with a rated current of 6.2A, providing 150W.
Dimensions are 38.0 x 97.0 x 178.0 mm and it is designed for chassis mounting.
The operating temperature range is -10°C to 70°C with derating above 50°C.
Yes, it features electronic shutdown with automatic restart upon short-circuit.
Yes, the output voltage can be adjusted via a potentiometer from 22 to 28V DC.
It is certified to UL 508 and EN 60950-1 standards.
