Mfr Part #:

6EDL04I06PT

Mfr Name: Infineon

The Infineon 6EDL04I06PT is a 600V three-phase gate driver IC. It features an integrated bootstrap diode and over-current protection.

✓ Total Stock: 1,305 pcs

$ Price Range: $103.07

6EDL04I06PT Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	1,071 pcs On Request	1071 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	204 pcs On Request	204 pcs	On Request	1	On Request	On Request	17+	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	30 pcs On Request	30 pcs	On Request	1	On Request	On Request	21+	On Request	On Request

6EDL04I06PT Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon

View Similar Products (0)

6EDL04I06PT Description

Short technical summary and product information.

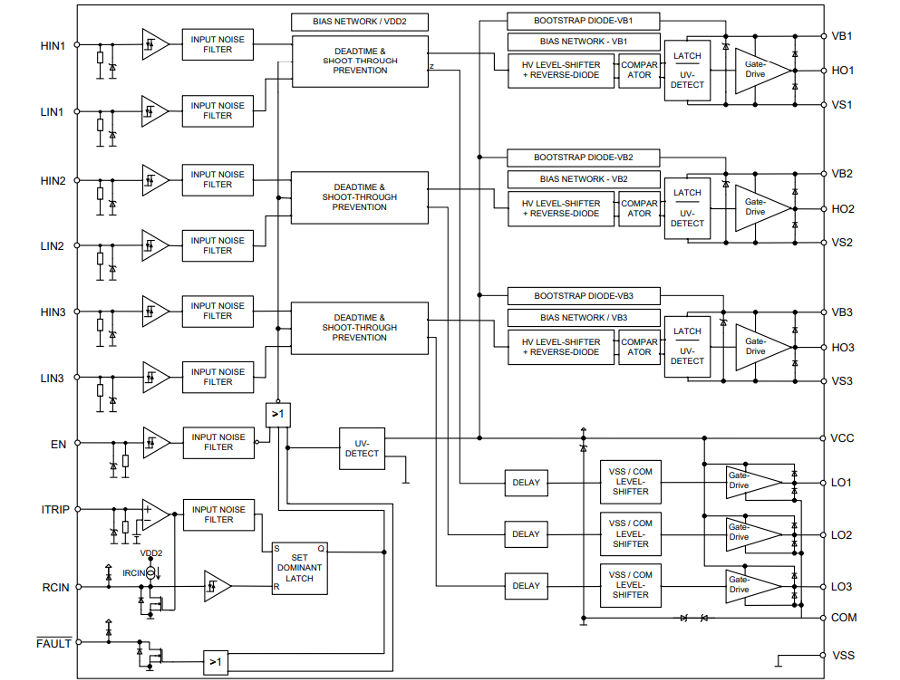

The Infineon 6EDL04I06PT is a second-generation three-phase gate driver IC designed for controlling power devices like MOS-transistors or IGBTs in 3-phase systems. It offers a maximum blocking voltage of +600 V and utilizes Infineon's thin-film SOI technology for excellent ruggedness against transient voltages.

Key features include an integrated ultra-fast bootstrap diode, output source/sink current capabilities of +0.165 A/-0.375 A, and detection of over-current and under-voltage supply conditions. The device provides separate control circuits for all six drivers and includes signal interlocking to prevent cross-conduction. It is available in DSO-28 and TSSOP-28 packages.

Potential applications for the 6EDL04I06PT include motor drives, general-purpose inverters, home appliances like refrigeration compressors and air-conditioning units, fans, pumps, power tools, and light electric vehicles. The device is qualified for industrial applications according to JEDEC standards.

6EDL04I06PT Quick Information

Product Type: Gate Driver IC

Canonical Name: 6EDL04I06PT Three-Phase Gate Driver

Subcategory: Three-Phase Gate Driver

6EDL04I06PT Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

6EDL04I06PT Estimated Pricing

Qty	Low	High
1+	$103.07	$103.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

6EDL04I06PT Features

Maximum blocking voltage of 600V.
Integrated ultra-fast bootstrap diode.
Output current: +0.165A / -0.375A.
Over-current and under-voltage detection.
Available in DSO-28 and TSSOP-28 packages.

6EDL04I06PT Applications

Ideal for motor drives.
Used in general purpose inverters.
Suitable for home appliances.
Applicable to fans and pumps.
Designed for light electric vehicles.

6EDL04I06PT FAQs

5 frequently asked questions generated from this part’s specifications.

What package options are available for the 6EDL04I06PT?

The 6EDL04I06PT is available in DSO-28 and TSSOP-28 packages.

What is the maximum blocking voltage of the 6EDL04I06PT?

600V.

What are the typical output source and sink currents?

Typical output source current is +0.165A and sink current is -0.375A.

What are the turn-on and turn-off delay times?

Turn-on delay time is 60 ns and turn-off delay time is 26 ns under a 1 nF load.

What are the propagation delays (ton/toff)?

Typical ton is 530 ns and toff is 490 ns.
