Mfr Part #:

6A10-T

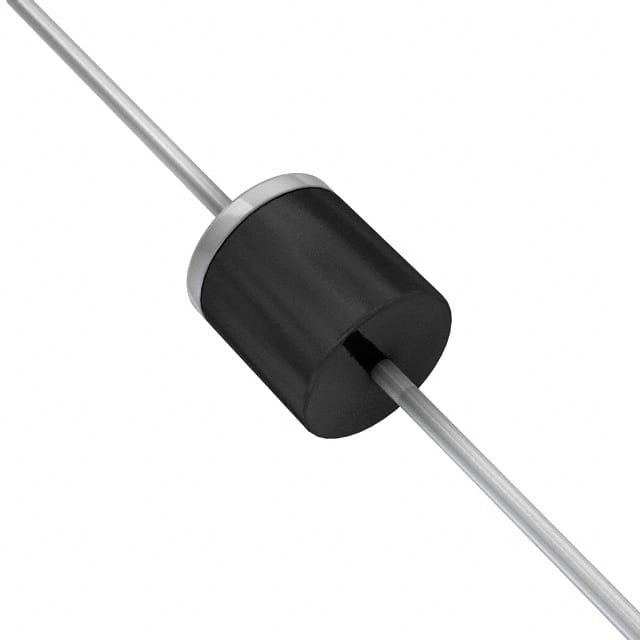

The 6A10-T is a 6A, 1000V silicon rectifier diode from Diodes Incorporated in an R-6 axial package. It features standard recovery speed, low forward voltage drop, and high surge capability.

✓ Total Stock: 1,192 pcs

6A10-T Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	500 pcs On Request	500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Emiteli ✓ Non-Authorised Inventory information	500 pcs On Request	500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Bristol Electronics ✓ Non-Authorised Inventory information	192 pcs On Request	192 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

6A10-T Description

Short technical summary and product information.

The 6A10-T is a 6.0A silicon rectifier diode designed for general purpose power conversion applications. It offers a maximum repetitive peak reverse voltage of 1000V and a maximum average forward rectified current of 6A. The device exhibits a low forward voltage drop of 0.9V at 6A, contributing to improved efficiency in rectifier circuits. It can withstand a peak forward surge current of 400A (8.3ms single half sine-wave), providing robustness during startup and fault conditions. The diode is packaged in an R-6 axial leaded case, enabling through-hole mounting. The terminals are finished with tin and are solderable per MIL-STD-202 Method 208. The case is molded plastic with UL 94V-0 flammability rating. The device can operate over a junction temperature range of -65°C to +175°C. It is standard recovery (greater than 500ns), making it suitable for line frequency rectification.

6A10-T Quick Information

Product Type: Rectifier Diode

Canonical Name: 6A10-T General Purpose Silicon Rectifier Diode

Subcategory: Standard Recovery Rectifier

6A10-T Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Level 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

6A10-T Features

1000V maximum repetitive reverse voltage.
6A average forward rectified current.
400A peak forward surge current capability.
Low forward voltage drop of 0.9V at 6A.
Standard recovery greater than 500ns.

6A10-T Applications

Power supply input rectification circuits.
Converters and inverters output rectification.
Battery charger rectifier stages.
Freewheeling and snubber diode applications.

6A10-T FAQs

6 frequently asked questions generated from this part’s specifications.

What is the maximum repetitive reverse voltage of the 6A10-T?

The maximum repetitive peak reverse voltage (VRRM) is 1000V.

What is the forward voltage drop at rated current?

The maximum forward voltage is 0.9V at 6A DC.

What package does the 6A10-T use?

The device is packaged in an R-6 axial leaded case (through-hole mounting).

What is the operating temperature range?

The junction operating temperature range is -65°C to +175°C.

Is the 6A10-T RoHS compliant?

Yes, it is RoHS3 compliant (EU Directive 2011/65/EU and 2015/863/EU).

What is the surge current rating?

The peak forward surge current is 400A for a single 8.3ms half sine-wave.

Category	Diodes - Rectifiers - Single
Manufacturer Name	Diodes Incorporated
Current	6A
Halogen Free	Yes
Industrial Grade	Yes
Lead Style	Axial
Mounting Type	Through Hole
Operating Temperature	-65°C ~ 175°C
Package / Case	R-6
Peak Forward Surge Current	400 A
SVHC Present	Not Present
Speed	Standard Recovery >500ns, > 200mA (Io)
Storage Temperature	-65°C ~ 175°C
Supplier Device Package	R-6
Tape & Reel	Yes
Technology	Standard
Voltage	900 mV @ 6 A
