| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Current - Output | |
| Duration | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Voltage - Input | |
| Voltage - Output |

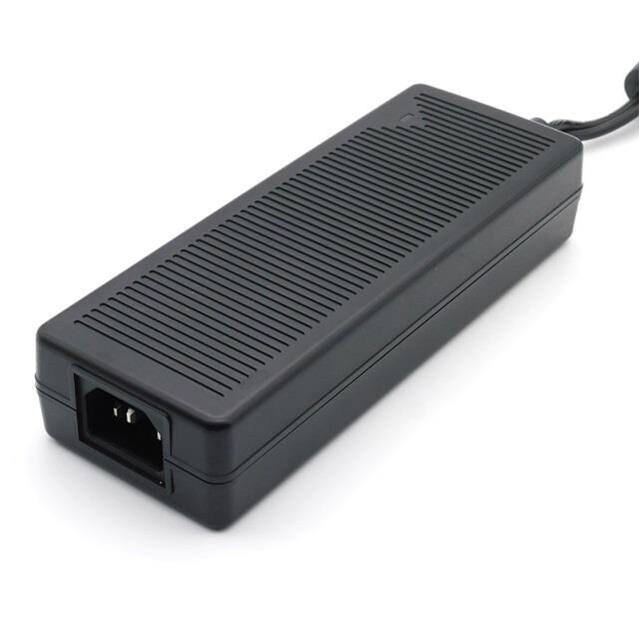

This AC/DC desktop adapter from ENG ELECTRIC CO., LTD, part number 6A-901DB12-028, provides a 12V output with a maximum current of 7.5A, delivering up to 90W of power. It is designed for ITE (Commercial) applications and features a desktop (Class I) form factor.
The adapter operates within a wide input voltage range of 90 to 264 VAC and utilizes an IEC 320-C14 input connector. Key electrical specifications include Level VI efficiency and a low no-load power consumption of 210mW maximum. The output is delivered via a standard barrel plug with dimensions of 2.5mm I.D. x 5.5mm O.D. x 9.5mm, and the cord length is 60.2 inches (1.53m).
Mechanical dimensions are 6.57" L x 2.44" W x 1.34" H (167.0mm x 62.0mm x 34.0mm). The operating temperature range is 0°C to 40°C. This adapter complies with international standards including 60950-1 and 62368-1 and has received approvals from agencies such as AS/NZS, CB, CSA, FCC, IEC, PSE, UKCA, and UL.
90-264 VAC.
12V at 7.5A.
90W.
Level VI.
0°C to 40°C.
IEC 320-C14.
Barrel plug, 2.5mm ID x 5.5mm OD x 9.5mm, positive center.
