| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Polarization | |
| Power | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

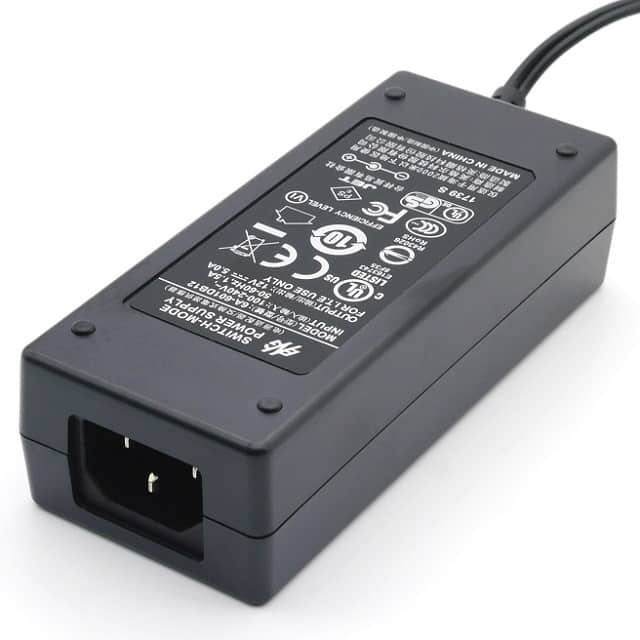

The ENG ELECTRIC CO., LTD 6A-601DB12-087 is a 60W AC/DC desktop power supply designed for universal applications. It accepts a wide input voltage range of 90-264VAC and operates at frequencies between 47-63Hz, making it suitable for international use.
This adapter delivers a regulated 12V output with a maximum current of 5A. It complies with CEC, DoE Level VI, ErP Stage 2, CoC Tier 2, and GEMS energy efficiency standards. The unit features low ripple noise and includes Over Current Protection (OCP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP).
Designed with a natural convection cooling method, the adapter operates within an ambient temperature range of 0°C to 40°C. It is housed in a desktop (Class I) form factor and utilizes an IEC 320-C14 input connector. The output is delivered via a standard barrel plug with 2.5mm inner diameter and 5.5mm outer diameter, featuring positive center polarization. The included cord length is 1.20 meters (47.2 inches).
Safety certifications include UL/CUL, CB, CE, FCC, CCC, PSE, and RCM, adhering to standards such as IEC/EN/UL/CUL 62368 & 60950. It also meets EMC standards like FCC CFR 47 PART 15B and EN55032.
90-264VAC.
12V at 5A.
60W.
Level VI.
0°C to 40°C.
Desktop (Class I) with IEC 320-C14 input and barrel plug output.
UL, CUL, CB, CE, FCC, CCC, PSE, RCM, UL 62368-1, CSA C22.2 No.62368-1, IEC62368-1, EN62368-1, UL 60950-1, CSA C22.2 No.60950-1, IEC60950-1, EN60950-1.
