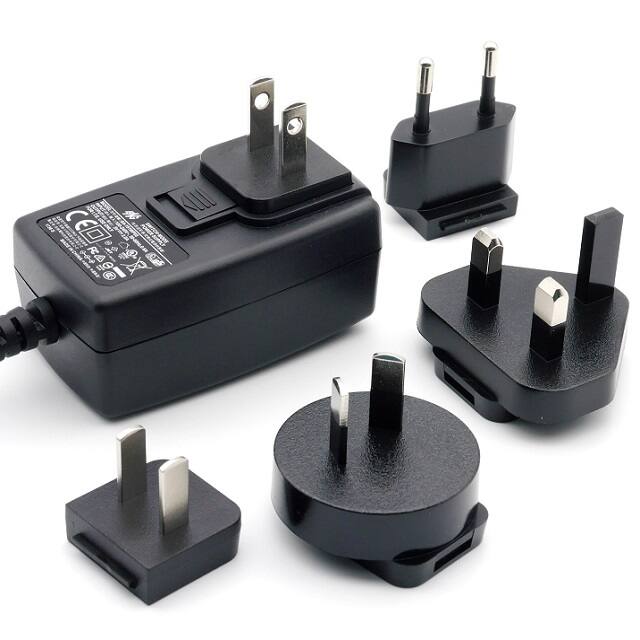

6A-242WP12-067 The ENG ELECTRIC CO., LTD 6A-242WP12-067 is a 12V AC/DC wall mount adapter. It provides a 2A output current and operates with a wide input voltage range.
Mfr Part #:

6A-242WP12-067

Mfr Name: ENG Electric Co., LTD
ENG Electric Co., LTD
The ENG ELECTRIC CO., LTD 6A-242WP12-067 is a 12V AC/DC wall mount adapter. It provides a 2A output current and operates with a wide input voltage range.
Stock on Request

6A-242WP12-067 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Approval Agency
Automotive Grade
Average Efficiency
Cord Length
Current
Efficiency
Form
Frequency
Industrial Grade
Input Connector
Input Type
Input Voltage
Medical Grade
Military Grade
No Load Power Consumption
Operating Temperature
Output Connector
Output Current
Output Voltage
Polarization
Region Utilized
Standard Number
Tape & Reel
Voltage

6A-242WP12-067 Description

Short technical summary and product information.

This 12V AC/DC wall mount adapter from ENG ELECTRIC CO., LTD, part number 6A-242WP12-067, is designed for ITE (Commercial) applications. It features a 2A maximum output current and a 12VDC output voltage.



The adapter operates across a wide input voltage range of 90-264 VAC with a frequency of 50-60 Hz. It meets Level VI efficiency standards and has a low no-load power consumption of 0.1W maximum. Safety is ensured through compliance with standards like 60950-1 and 62368-1, with various agency approvals including UL, CB, and FCC.



The unit has a compact form factor, measuring 74.0mm x 43.5mm x 35.3mm, and utilizes a multi-blade input connector and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm). It is designed for wall mounting and features positive center polarization.

6A-242WP12-067 Quick Information

Product Type: AC DC Desktop, Wall Adapters
Series: 6A-242WP12 (24W)
Canonical Name: 12V AC/DC Wall Mount Adapter
Subcategory: Wall Mount Adapter

6A-242WP12-067 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

6A-242WP12-067 Features

  • 12V DC output voltage.
  • 2A maximum output current.
  • 90-264 VAC wide input range.
  • Level VI efficiency rating.
  • Compact wall mount form factor.

6A-242WP12-067 Applications

  • Ideal for powering 12V DC electronic devices.
  • Suitable for global use with universal AC input.
  • Used in consumer electronics and peripherals.
  • Applicable for low-power industrial equipment.

6A-242WP12-067 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the 6A-242WP12-067 adapter?

The output voltage is 12VDC.

What is the maximum output current for this adapter?

The maximum output current is 2A.

What is the input voltage range for the 6A-242WP12-067?

The adapter accepts an input voltage range of 90-264 VAC.

What efficiency level does this adapter meet?

It meets the Level VI efficiency standard.

What are the operating temperature limits?

The operating temperature range is 0°C to 40°C.

What type of output connector does it have?

It features a Barrel Plug with dimensions 2.5mm I.D. x 5.5mm O.D. x 9.5mm.
