| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Lead Style | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

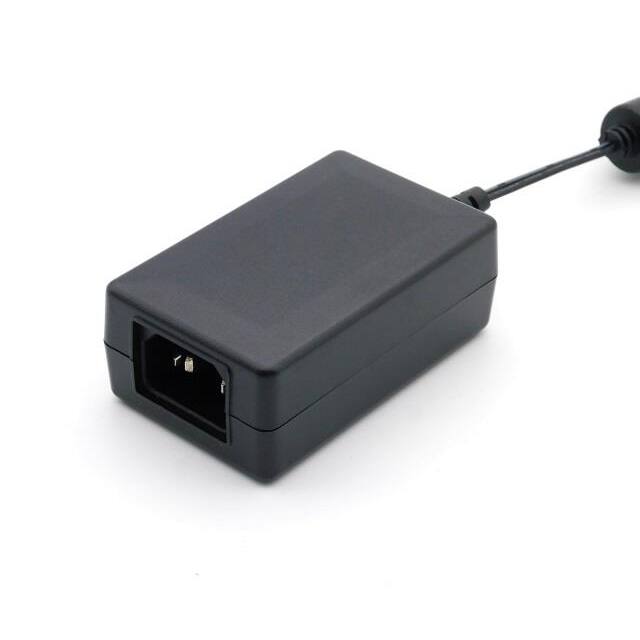

This ENG ELECTRIC CO., LTD 6A-201DB05-066 is a 20W AC/DC desktop power supply designed for commercial ITE applications. It accepts a universal AC input range of 90-264VAC and provides a regulated 5V output at up to 4A.
The adapter meets Level VI energy efficiency standards and complies with safety regulations including UL, CB, CE, and FCC. It features an IEC 320-C14 input connector and a standard barrel plug output.
Key specifications include a compact desktop form factor with dimensions of 80.0mm x 50.0mm x 31.0mm. The operating temperature range is 0°C to 40°C, and it has an MTBF of 50,000 hours.
This model is suitable for international use and is RoHS3 compliant.
The 6A-201DB05-066 adapter provides a 5V output at 4A, for a total of 20W.
This power supply accepts a universal AC input range of 90 to 264VAC.
The operating temperature range for this adapter is 0°C to 40°C.
Yes, it meets Level VI energy efficiency standards.
The adapter uses an IEC 320-C14 input connector.
The RoHS status is RoHS3 Compliant.
