| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| EMC | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Safety | |
| Standard Number | |
| Voltage | |
| Width |

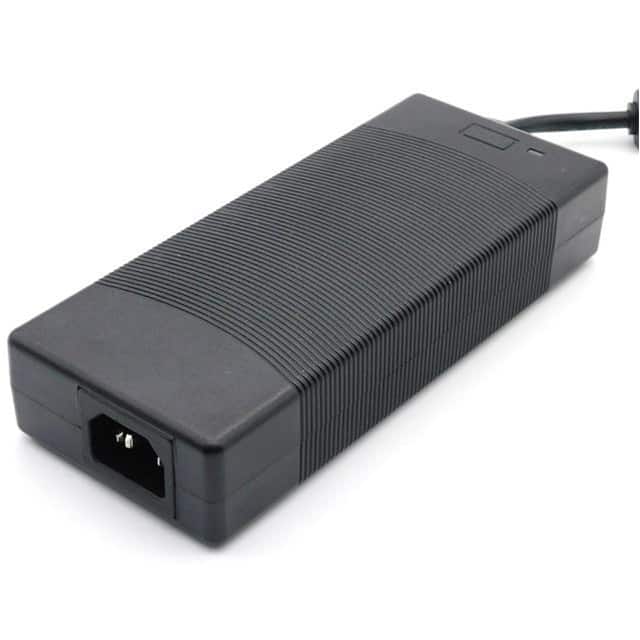

The ENG ELECTRIC 6A-1C1DB24-025 is a desktop AC/DC adapter designed for reliable power delivery. It accepts a universal input of 90 to 264 VAC at 47-63 Hz and provides a regulated 24V DC output at up to 5A, with a maximum power rating of 120W. The adapter meets Level VI efficiency standards, ensuring minimal energy loss, and its no-load power consumption is only 210mW maximum.
The unit is housed in a desktop (Class I) form factor with dimensions of 171.4mm x 72.1mm x 31.7mm and a 39.4-inch output cord terminated in a barrel plug (2.5mm ID x 5.5mm OD x 9.5mm, positive center polarity). The AC input uses an IEC 320-C14 connector; the power cord is sold separately. The operating temperature range is 0°C to 40°C.
Safety compliance includes IEC/EN/UL/CUL 62368-1 and 60950-1 standards, with EMC compliance to FCC Part 15B, EN55032, and EN61000-3. The adapter carries UL/CUL, CB, CE, FCC, AS/NZS, CSA, IEC, and UKCA approvals. It is suitable for powering a wide range of ITE and audio/video equipment requiring a 24V DC source.
The input voltage range is 90 to 264 VAC at 47-63 Hz.
The output is 24V DC at 5A, with a maximum power of 120W.
The adapter meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
The output connector is a barrel plug with 2.5mm inner diameter and 5.5mm outer diameter.
It complies with IEC/EN/UL/CUL 62368-1 and 60950-1 standards, with UL, CSA, CE, FCC, and other approvals.
