| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage |

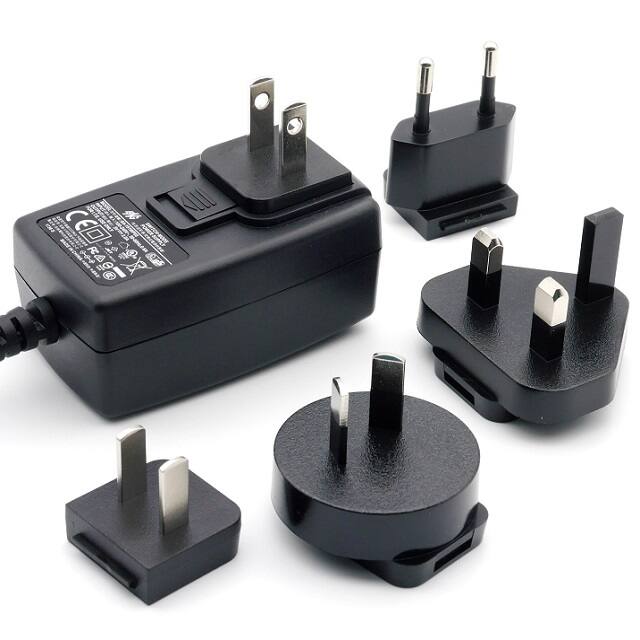

The ENG ELECTRIC CO., LTD 6A-181WP12-187 is a versatile AC/DC wall mount adapter designed for various applications. It provides a stable 12V output at 1.5A, delivering a total power of 18W.
This adapter features a universal AC input range of 90-264Vac, making it suitable for international use. It complies with Level VI efficiency standards, ensuring reduced energy consumption. The adapter is built to meet safety regulations including IEC/EN/UL/CUL 62368 & 60950 and EMC standards like FCC CFR 47 PART 15B.
Designed as a Wall Mount (Class II) unit, it utilizes a multi-blade input connector and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D.). The operating temperature range is 0°C to 40°C, with a Mean Time Between Failures (MTBF) of 50,000 hours. Its dimensions are 74.0mm x 43.5mm x 35.3mm.
The 6A-181WP12-187 adapter provides a 12V output at 1.5A.
The power rating of the 6A-181WP12-187 adapter is 18W.
The adapter accepts a universal input voltage range of 90-264Vac.
This adapter meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
It uses a Barrel Plug with a 2.5mm I.D. x 5.5mm O.D. and 9.5mm length.
Yes, the RoHS status is RoHS3 Compliant.
