| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

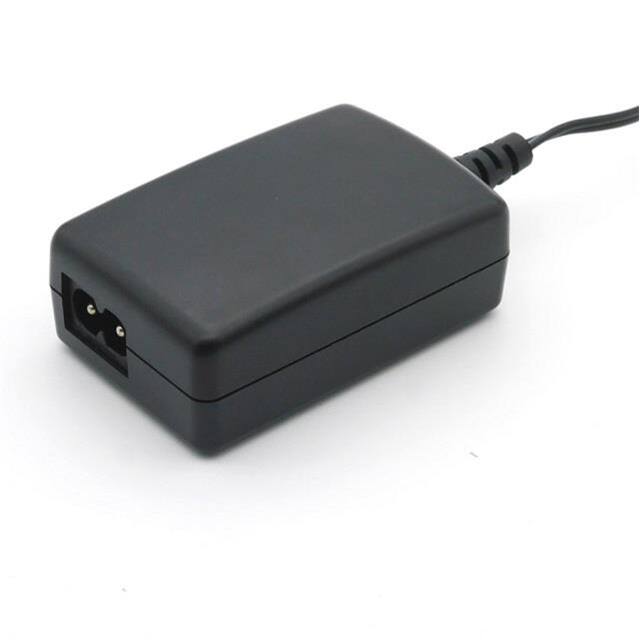

The ENG ELECTRIC CO., LTD 6A-151DA05-026 is a 13W AC/DC desktop power supply designed for commercial ITE applications. It provides a regulated 5V output with a maximum current of 2.5A and features universal AC input from 90 to 264 VAC.
This adapter meets Level VI efficiency standards, ensuring energy savings and reduced heat generation. It operates within a temperature range of 0°C to 40°C and includes essential protections such as OCP/OVP/SCP. The input connector is IEC 320-C8, and the output is delivered via a standard barrel plug (2.5mm I.D. x 5.5mm O.D. x 9.5mm).
Compliance includes UL, CB, CE, FCC, and CCC certifications, adhering to safety standards like IEC62368-1 and IEC60950-1. The compact desktop form factor (Class II) makes it suitable for various integration needs. It also boasts a low no-load power consumption of 100mW maximum.
90-264 VAC.
5V DC.
2.5A.
13W.
Level VI.
0°C to 40°C.
AS/NZS, CB, CCC, CSA, FCC, IEC, PSE, RCM, UKCA, UL.
