| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

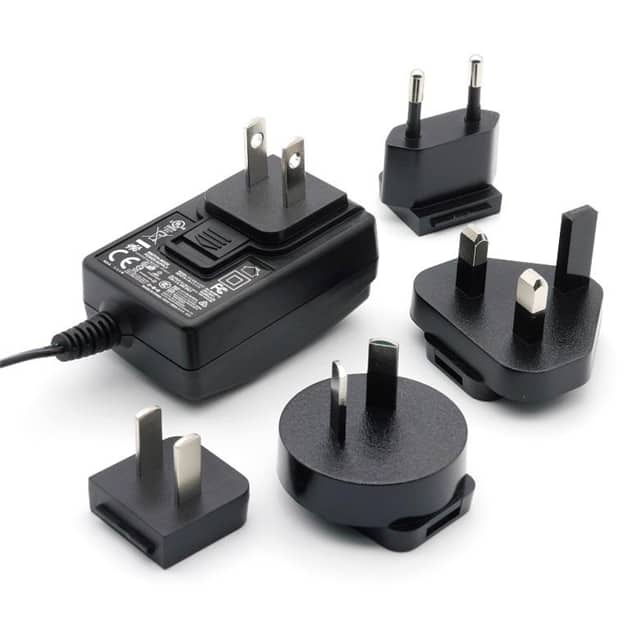

The ENG ELECTRIC CO., LTD 6A-121WP12-060 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a regulated 12V output with a maximum current of 1A, providing a total power of 12W.
This adapter features universal AC input from 90-264Vac and meets Level VI efficiency standards. It is equipped with a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm) and a multi-blade input connector. The device operates within an ambient temperature range of 0°C to 40°C.
Designed for international use, the 6A-121WP12-060 has a compact form factor with dimensions of 62.0mm x 40.5mm x 31.0mm. It includes safety certifications from various agencies such as UL, CUL, CB, CE, FCC, and PSE, supporting its use in diverse global markets.
The 6A-121WP12-060 adapter provides a 12V output at 1A.
The power rating of the 6A-121WP12-060 adapter is 12W.
The 6A-121WP12-060 adapter accepts a universal AC input range of 90-264 VAC.
The operating temperature range for the 6A-121WP12-060 adapter is 0°C to 40°C.
Yes, the 6A-121WP12-060 adapter meets the Level VI efficiency standard.
The 6A-121WP12-060 adapter uses a Barrel Plug connector with dimensions of 2.1mm I.D. x 5.5mm O.D. x 12.0mm.
