| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Protection | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

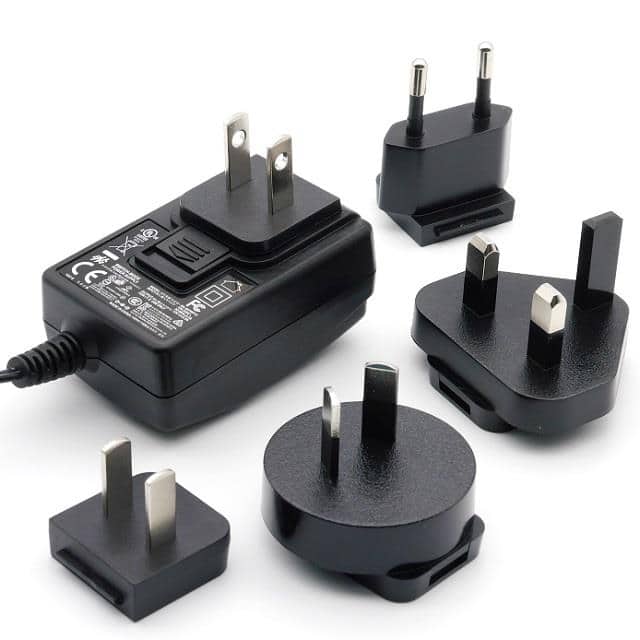

This ENG ELECTRIC CO., LTD 6A-061WP12-112 is a versatile 6W AC/DC wall mount adapter designed for broad application.
It features a universal AC input range of 90-264VAC and operates at 47-63Hz, making it suitable for international use. The adapter provides a regulated 12V output with 500mA current, delivering 6W of power. It is designed with low ripple noise and includes essential protection features such as Over Current Protection (OCP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP).
The adapter meets Level VI efficiency standards and complies with safety regulations including UL 62368-1, CSA C22.2 No.62368-1, IEC62368-1, EN62368-1, UL 60950-1, CSA C22.2 No.60950-1, IEC60950-1, and EN60950-1. EMC compliance is met with FCC CFR 47 PART 15B, EN55032, EN61000-3, EN55024, and EN61000-4 standards.
Packaged as a wall mount (Class II) unit, it has dimensions of 62.0mm x 40.5mm x 31.0mm. The input connector is Multi-Blade, and the output connector is a Barrel Plug with 2.5mm I.D. x 5.5mm O.D. x 9.5mm dimensions and a positive center. The cord length is 1.53m (60.2"). The operating temperature range is 0°C to 40°C, with a storage temperature range of -10°C to +70°C. It boasts an MTBF of 50,000 hours.
The adapter has an output voltage of 12V and an output current of 500mA.
The power rating of this adapter is 6W.
The adapter accepts a universal AC input voltage range of 90-264VAC.
The adapter operates within a temperature range of 0°C to 40°C.
It complies with safety standards including IEC/EN/UL/CUL 62368 & 60950.
The output connector is a Barrel Plug with 2.5mm I.D. x 5.5mm O.D. x 9.5mm dimensions.
Yes, it includes OCP (Over Current Protection) and OVP (Over Voltage Protection).
