| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

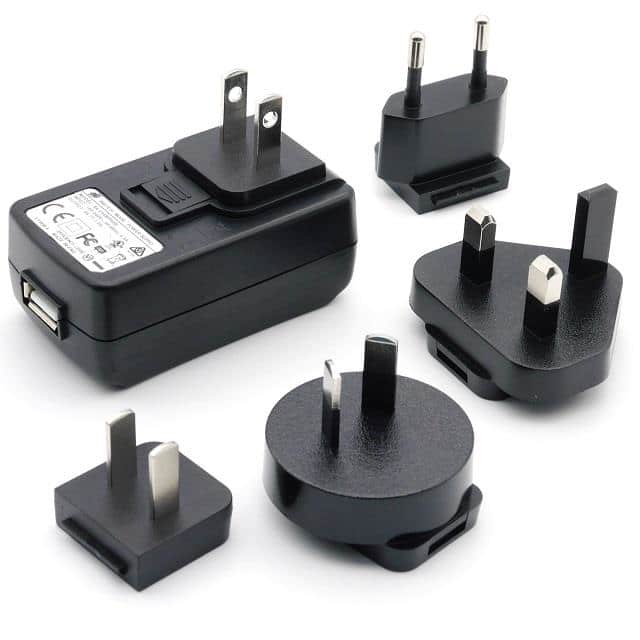

The ENG ELECTRIC CO., LTD 6A-054WP5B-061 is a versatile AC/DC wall mount adapter designed for commercial ITE applications. It provides a stable 5V output with a maximum current of 1A, delivering a total power of 5W. The adapter accepts a universal AC input range of 90 to 264 VAC at 47-63Hz, making it suitable for global use.
This adapter meets the stringent Level VI efficiency standards, ensuring reduced energy consumption. It operates within a temperature range of 0°C to 40°C and features a compact wall-mount form factor (Class II) with a positive center polarization. The output is delivered via a standard 2.5mm I.D. x 5.5mm O.D. barrel plug.
Compliance with safety standards including UL, CB, CE, FCC, and IEC is confirmed, alongside adherence to 60950-1 and 62368-1 regulations. The device is designed for natural convection cooling and includes over-current, over-voltage, and short-circuit protection for reliable operation.
The input voltage range is 90-264 VAC at 47-63 Hz.
It provides 5V output at up to 1A, with 5W output power.
The operating temperature range is 0°C to 40°C.
The adapter uses a book-style wall mount package with Class II construction.
It meets Level VI efficiency and has a maximum no-load power consumption of 100mW.
It is designed to meet standards 60950-1 and 62368-1.
The dimensions are 71.0mm x 41.0mm x 31.5mm.
