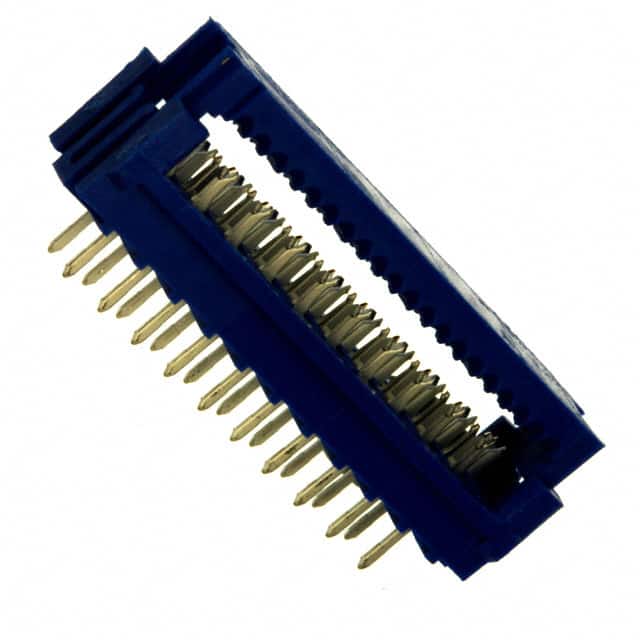

The Amphenol ICC 69830-020LF is a 20-position DIP header IDC connector designed for direct wire-to-board connections. It features a 0.100" (2.54mm) pitch on the board side and a 0.050" (1.27mm) cable pitch, with 0.100" (2.54mm) row spacing. The connector accepts 26-28 AWG stranded or solid wire via IDC termination.
This connector uses a through hole mounting style and is terminated using an IDC (Insulation Displacement Connection) method, offering a reliable connection without stripping wire. Contacts are finished with 150.0µin (3.81µm) of tin. The housing is blue and includes a feed through feature, allowing daisy-chaining or pass-through wiring.
With a DIP package style and two rows of pins, this connector is suitable for applications that require a compact, reliable interface between ribbon cable and a printed circuit board. It is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.11 | $2.11 |
| 19+ | $1.71 | $1.71 |
| 38+ | $1.63 | $1.63 |
| 57+ | $1.58 | $1.58 |
| 114+ | $1.51 | $1.51 |
| 266+ | $1.42 | $1.42 |
| 513+ | $1.35 | $1.35 |
| 1,007+ | $1.29 | $1.29 |
| 2,508+ | $1.21 | $1.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The board side pitch is 0.100" (2.54mm) and the cable pitch is 0.050" (1.27mm).
It has 20 positions arranged in 2 rows.
It is through hole mounted.
It accepts 26-28 AWG stranded or solid wire.
The contacts are finished with 150.0µin (3.81µm) of tin.
